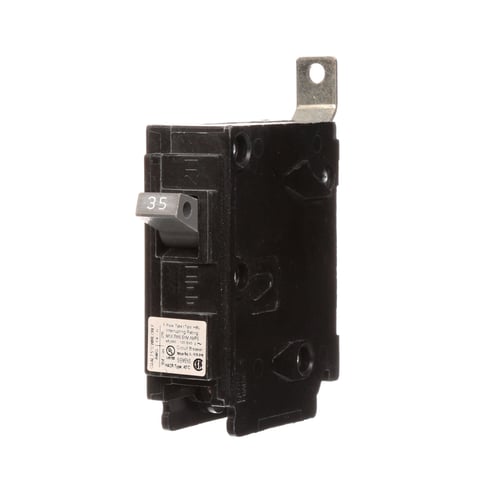

Siemens B135HH Type HBL Low Voltage Molded Case Circuit Breaker, 120 VAC, 35 A, 65 kA Interrupt, 1 Poles, ThermalMagnetic Trip


Description

Siemens Molded Case Circuit Breaker, Type HBL Low Voltage, 120 VAC, 35 A, 60 Hz Frequency, 65 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, Toggle Actuator, Bolt-On Connection, 14 to 6 AWG, 12 to 6 AWG Wire, Panel Mounting, 40 deg C, 3.5 in L x 1 in W x 3.9 in H Dimensions

Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.

Features

  • Sense when an over current occurs
  • Measure the amount of over current
  • Act by tripping quickly enough to prevent damage to itself and associated conductors
  • Mounting with insta-wire
  • 14 to 6 AWG copper, 12 to 6 AWG aluminum wire

Specifications

GTIN: 00783643107236

UNSPSC: 39121601

Country of Origin: Mexico

Trip Type
Thermal/Magnetic
Interrupt Rating
65 kA
Number of Poles
1
Frequency Rating
60 Hz
Voltage Rating
120 VAC
Actuator Type
Toggle
Weight
0.1 lbs
Mounting Type
Panel
Connection Type
Bolt-On
Phase
1
Amperage Rating
35 A
Temperature Rating
40 deg C
BABA Compliant
No
Wire Size
14 to 6 AWG, 12 to 6 AWG
Type
Type HBL Low Voltage
Dimensions
3.5 in L x 1 in W x 3.9 in H
Sold as
EACH
