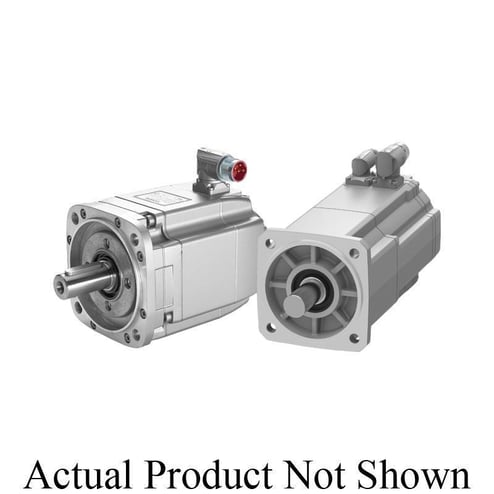

Siemens SIMOTICS S A6X30157450 1FK7 High Dynamic Natural Cooling Servomotor With Holding Brake, 3.35 hp, 510 to 720 VDC, 7.6 A, 3000 rpm Speed, IM B5 Flange Mount


Description

Siemens SIMOTICS S Servomotor, High Dynamic Natural Cooling, Series: 1FK7, 3.35 hp, 510 to 720 VDC, 7.6 A, 3000 rpm, IP65/IP67 Enclosure, 0.94 in Dia x 1.97 in L Shaft, 8 N-m, IM B5 Flange Mount, 104 deg F, Insulation Class: Class F, 4.96 in W

SIMOTICS S-1FK7 motors are permanent magnet excited synchronous motors which are available in the versions compact, high dynamic and high inertia. The motors are characterized by superior overload capability, ruggedness and compactness. The connection via rotatable connectors and preassembled cables ensures a flexible, fast and safe connection to the converter.

Features

  • High degree of efficiency and triple overload capability
  • Shock and vibration-resistant due to mechanically isolated encoder connection
  • Easy to assemble and service due to rotatable connector with quick-release fastener and exchangeable encoder
  • Digital DRIVE-CLiQ interface with electronic rating plate for optimum connection to SINAMICS S120

Specifications

GTIN: 00804766911415

UNSPSC: 26101109

Country of Origin: Germany

Type
High Dynamic Natural Cooling
Torque Rating
8 N-m
Voltage Rating
510 to 720 V DC
Weight
1 lbs
Shaft Size
0.94 in Dia x 1.97 in L
Speed
3000 rpm
Insulation Class
Class F
Enclosure Type
IP65/IP67
Dimensions
4.96 in W
Mounting Type
IM B5
Series
1FK7
Amperage Rating
7.6 A
Temperature Rating
104 deg F
Horsepower
3.35 hp
BABA Compliant
No
Sold as
EACH
