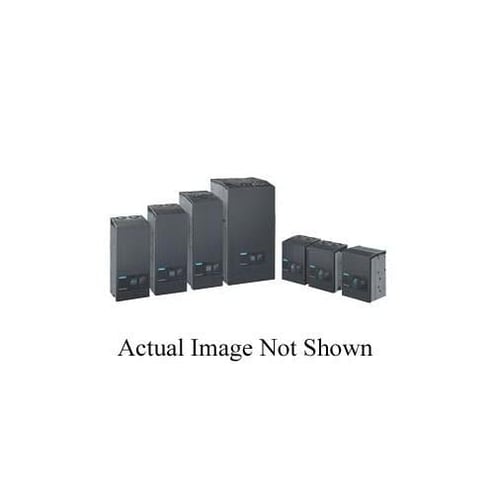

Siemens SINAMICS DCM A6X30155008 4-Quad Forced Ventilated DC Converter, 575 VAC, 600 VDC, 498600 A

Siemens SINAMICS DCM DC Converter, 4-Quad Forced Ventilated, 575 VAC, 600 VDC, 498/600 A, 3 ph, 268 mm Width, 275 mm Depth, 625 mm Height, IP00 Enclosure, Digital Display

SINAMICS DC master is the new generation of DC converter from Siemens. The name SINAMICS DC master briefly SINAMICS DC embodies the strengths of this new generation. It combine the advantages of its predecessor SIMOREG DC MASTER, with the advantages of the SINAMICS family. When it comes to quality, reliability and functionality, SINAMICS DC master is not only on par with its predecessor but especially in the area of functionality offers new features and includes useful functions from its predecessor as standard. SINAMICS DC master is the new member of the SINAMICS family that now makes many of the SINAMICS tools and component known from AC technology available to DC technology. As a scalable drive system, the SINAMICS DC master series of converter is convincing both for basic as well as demanding applications. The dc converter is equipped with a standard control unit (standard CUD). The option of combining a standard CUD and advanced CUD is used to address applications demanding a higher computational performance and more interfaces. The dc converter of the SINAMICS DC master series combine the open loop and closed loop control and power sections in one device. It especially sets itself apart as a result of the compact, space saving design. The AOP30 advanced operator panel and the BOP20 basic operator panel can be used for commissioning and local operation. The interfaces of the CUD and the number of digital inputs and outputs can be supplemented using additional modules such as the TM15, TM31 and TM150 terminal modules. The component of a DC drive system and how these are logically interlinked are shown in the following diagram. A flow diagram on pages 1/14 and 1/15 provides support when selecting and dimensioning the required components.
