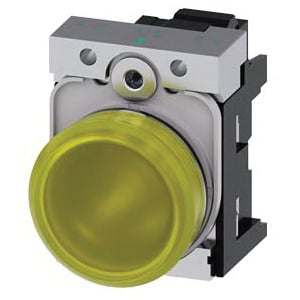

Siemens SIRIUS ACT A6X30143552 3SU11 Complete Illuminated Indicator Light With Metal Holder and Laser Labeling, 110 VAC, 3 A, Smooth Lens, Front PlatePanel Mount


Description

Siemens SIRIUS ACT Indicator Light, Complete Illuminated, Series: 3SU11, 110 VAC, 3 A, Smooth Lens, Yellow Lens, Plastic Lens, LED Lamp, 450 to 1120 mcd, Bezel/Housing: Metal, 22 mm, Round, Spring Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K, Front Plate/Panel Mount, Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity

SIRIUS ACT is a modular system of pushbuttons and indicator lights for front plate mounting and rear mounted electrical modules. It can be flexibly configured to specific customer requirements and features extensive accessories. For common applications, complete devices are offered.

Features

  • Rugged and durable, even in a tough environment, thanks to IP69K protection (including IP66, IP67, IP69)
  • High media resistance, for example, to oils, aggressive vapors and caustic solutions
  • Easy to operate, thanks to improved haptic properties and illumination
  • Fast, single handed installation thanks to retentive actuator function
  • Twist prevention integrated into patented holder design
  • Alignment arrows and distinct module slots for reliable connection
  • No special tools required, simple size 2 screwdriver
  • Communication solutions - AS-interface, IO-Link or PROFINET/PROFIsafe
  • Can be integrated easily via TIA portal
  • Self-holding function of the actuator when mounting
  • Stackable contact modules
  • Components can be mounted with holder removed
  • Mechanical endurance of 10 x 10^6 operating cycles
  • Reliable, friction locked fixing with just one screw
  • Design stability according to use
  • Simple geometry for mounting holes
  • Text in upper/lower case, all words begin with upper case letters

Specifications

GTIN: 00804766649639

UNSPSC: 39121534

Country of Origin: Germany

Type
Complete Illuminated
Terminal Type
Spring
Voltage Rating
110 VAC
Size
22 mm
Weight
267 lbs
Width
0
Shape
Round
Enclosure Type
NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
Lamp Type
LED
Mounting Type
Front Plate/Panel
Series
3SU11
Lens Material
Plastic
Amperage Rating
3 A
Lens Type
Smooth
Environmental Conditions
-25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
Bezel/Housing
Metal
BABA Compliant
No
Lens Color
Yellow
Lumens
450 to 1120 mcd
Sold as
EACH
