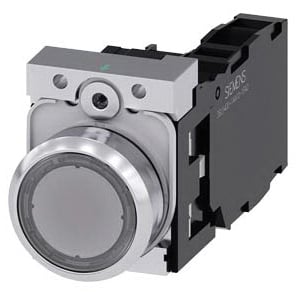

Siemens SIRIUS ACT A6X30143521 3SU11 Complete Round Illuminated Pushbutton With Holder and 110 VAC Integrated LED Module, 22 mm, 1NC-1NO Contact, Silver Alloy Contact, Flat Button Operator, ClearSilver


Description

Siemens SIRIUS ACT Illuminated Pushbutton, Complete Round, Series: 3SU11, 22 mm Size, 1NC-1NO Contact Configuration, Silver Alloy Contact, Momentary Contact Mode, Flat Button Operator, LED Lamp, Bezel/Housing: Metal, Solder Pin Connection, Spring Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K Enclosure, Front Plate/Panel Mounting, Metal, Shiny, Clear/Silver, Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity

SIRIUS ACT is a modular system of pushbuttons and indicator lights for front plate mounting and rear mounted electrical modules. It can be flexibly configured to specific customer requirements and features extensive accessories. For common applications, complete devices are offered.

Features

  • Rugged and durable, even in a tough environment, thanks to IP69K protection (including IP66, IP67, IP69)
  • High media resistance, for example, to oils, aggressive vapors and caustic solutions
  • Easy to operate, thanks to improved haptic properties and illumination
  • Fast, single handed installation thanks to retentive actuator function
  • Twist prevention integrated into patented holder design
  • Alignment arrows and distinct module slots for reliable connection
  • No special tools required, simple size 2 screwdriver
  • Communication solutions - AS-interface, IO-Link or PROFINET/PROFIsafe
  • Can be integrated easily via TIA portal
  • Self-holding function of the actuator when mounting
  • Stackable contact modules
  • Components can be mounted with holder removed
  • Mechanical endurance of 10 x 10^6 operating cycles
  • Reliable, friction locked fixing with just one screw
  • Design stability according to use
  • Simple geometry for mounting holes

Specifications

GTIN: 00804766649325

UNSPSC: 39122216

Country of Origin: Germany

Type
Complete Round
Size
22 mm
Weight
1.6 lbs
Contact Mode
Momentary
Width
6.3 in
Enclosure Type
NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
Operator Type
Flat Button
Mounting Type
Front Plate/Panel
Series
3SU11
Connection Type
Solder Pin
Material
Metal
Environmental Conditions
-25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
Finish
Shiny
Contact Type
Silver Alloy
Bezel/Housing
Metal
BABA Compliant
No
Contact Configuration
1NC-1NO
Lamp Type
LED
Color
Clear/Silver
Terminal Type
Spring
Sold as
EACH
