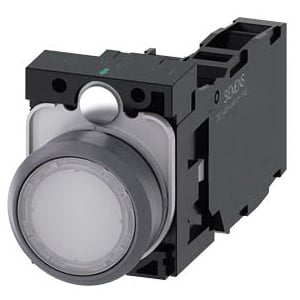

Siemens SIRIUS ACT A6X30142742 3SU11 Complete Round Illuminated Pushbutton With Holder, 24 VACVDC Integrated LED Module and Laser Labeling, 22 mm, 1NC-1NO Contact, Silver Alloy Contact, Flat Button Operator, Sand GrayWhite


Description

Siemens SIRIUS ACT Illuminated Pushbutton, Complete Round, Series: 3SU11, 22 mm Size, 1NC-1NO Contact Configuration, Silver Alloy Contact, Momentary Contact Mode, Flat Button Operator, LED Lamp, Bezel/Housing: Metal, Solder Pin Connection, Spring Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K Enclosure, Front Plate/Panel Mounting, Plastic, Matte, Sand Gray/White, Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity

SIRIUS ACT is a modular system of pushbuttons and indicator lights for front plate mounting and rear mounted electrical modules. It can be flexibly configured to specific customer requirements and features extensive accessories. For common applications, complete devices are offered.

Features

  • Rugged and durable, even in a tough environment, thanks to IP69K protection (including IP66, IP67, IP69)
  • High media resistance, for example, to oils, aggressive vapors and caustic solutions
  • Easy to operate, thanks to improved haptic properties and illumination
  • Fast, single handed installation thanks to retentive actuator function
  • Twist prevention integrated into patented holder design
  • Alignment arrows and distinct module slots for reliable connection
  • No special tools required, simple size 2 screwdriver
  • Communication solutions - AS-interface, IO-Link or PROFINET/PROFIsafe
  • Can be integrated easily via TIA portal
  • Self-holding function of the actuator when mounting
  • Stackable contact modules
  • Components can be mounted with holder removed
  • Mechanical endurance of 10 x 10^6 operating cycles
  • Reliable, friction locked fixing with just one screw
  • Design stability according to use
  • Simple geometry for mounting holes
  • Symbol with number according to ISO 7000 or IEC 60417

Specifications

GTIN: 00804766641541

UNSPSC: 39122216

Country of Origin: Germany

Size
22 mm
Contact Mode
Momentary
Enclosure Type
NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
Lamp Type
LED
Mounting Type
Front Plate/Panel
Series
3SU11
Material
Plastic
Contact Configuration
1NC-1NO
Environmental Conditions
-25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
Bezel/Housing
Metal
BABA Compliant
No
Contact Type
Silver Alloy
Connection Type
Solder Pin
Weight
82 lbs
Color
Sand Gray/White
Terminal Type
Spring
Type
Complete Round
Operator Type
Flat Button
Finish
Matte
Sold as
EACH
