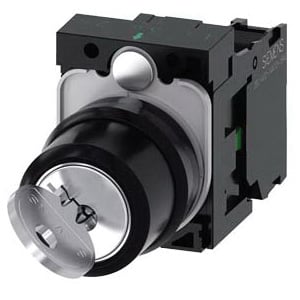

Siemens SIRIUS ACT A6X30142106 3SU11 Non-Illuminated Round Selector Switch With Front Ring, (2) Keys, Laser Labeling and Holder, 22 mm, 1NO Contact, RONIS SB30 KeyLatching Operator, BlackSilver
Siemens SIRIUS ACT A6X30142106 3SU11 Non-Illuminated Round Selector Switch With Front Ring, (2) Keys, Laser Labeling and Holder, 22 mm, 1NO Contact, RONIS SB30 KeyLatching Operator, BlackSilver
MPN A6X30142106
ASPN SIEA6X30142106
UPC 804766635182
Description
Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
- Text in lower case
- 90 deg (10:30 hr/13:30 hr)
- RONIS SB30 Key/Latching
Specifications
GTIN: 00804766635182
UNSPSC: 39122216
Country of Origin: Germany
| Type | Non-Illuminated Round |
|---|---|
| Terminal Type | Screw |
| Color | Black/Silver |
| Size | 22 mm |
| Weight | 1.1 lbs |
| Contact Mode | Maintained |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K |
| Number of Positions | 2 |
| Throw | 90 deg |
| Operator Type | Keyed |
| Mounting Type | Surface |
| Series | 3SU11 |
| Material | Metal/Plastic |
| Contact Configuration | 1NO |
| Environmental Conditions | -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity |
| Bezel/Housing | Plastic |
| BABA Compliant | No |
| Sold as | EACH |
