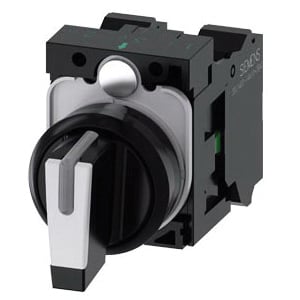

Siemens SIRIUS ACT A6X30142023 3SU11 Non-Illuminated Round Selector Switch With Front Ring, Laser Labeling and Holder, 22 mm, 1NO-1NO Contact, LatchingShort Lever Operator, BlackWhite


Description

Siemens SIRIUS ACT Selector Switch, Non-Illuminated Round, Series: 3SU11, 22 mm Size, 1NO-1NO Contact Configuration, Latching/Short Lever Operator, 3 Positions, 2 x 45 deg Throw, Bezel/Housing: Plastic, Spring Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K Enclosure, Surface Mounting, Plastic, Black/White, Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity

Features

  • Direct connection of the enclosure to AS-interface or IO-link
  • Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
  • Can be integrated easily via the TIA portal
  • Self-holding function of the actuator when mounting
  • Twist prevention integrated into patented holder design
  • Stackable contact modules
  • Self-explanatory and fast installation using one hand
  • Components can be mounted with holder removed
  • No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
  • Inscription of choice, text or symbol
  • (2) 45 deg (10:30 hr/12 hr/13:30 hr)

Specifications

GTIN: 00804766634352

UNSPSC: 39122216

Country of Origin: Germany

Type
Non-Illuminated Round
Terminal Type
Spring
Color
Black/White
Size
22 mm
Weight
0.8 lbs
Enclosure Type
NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
Number of Positions
3
Throw
2 x 45 deg
Operator Type
Latching/Short Lever
Mounting Type
Surface
Series
3SU11
Material
Plastic
Contact Configuration
1NO-1NO
Environmental Conditions
-25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity
Bezel/Housing
Plastic
BABA Compliant
No
Sold as
EACH
