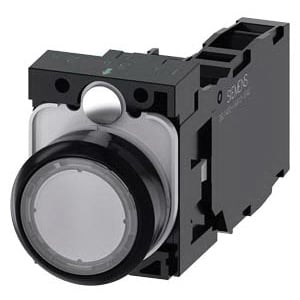

Siemens SIRIUS ACT A6X30141891 3SU11 Complete Round Illuminated Pushbutton With Holder, 24 VACVDC Integrated LED Module and Laser Labeling, 22 mm, 1NC-1NO Contact, Silver Alloy Contact, Flat Button Operator, BlackClear


Description

Siemens SIRIUS ACT Illuminated Pushbutton, Complete Round, Series: 3SU11, 22 mm Size, 1NC-1NO Contact Configuration, Silver Alloy Contact, Momentary Contact Mode, Flat Button Operator, LED Lamp, Bezel/Housing: Plastic, Solder Pin Connection, Screw Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K Enclosure, Front Plate/Panel Mounting, Plastic, Black/Clear, Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity

SIRIUS ACT is a modular system of pushbuttons and indicator lights for front plate mounting and rear mounted electrical modules. It can be flexibly configured to specific customer requirements and features extensive accessories. For common applications, complete devices are offered.

Features

  • Rugged and durable, even in a tough environment, thanks to IP69K protection (including IP66, IP67, IP69)
  • High media resistance, for example, to oils, aggressive vapors and caustic solutions
  • Easy to operate, thanks to improved haptic properties and illumination
  • Fast, single handed installation thanks to retentive actuator function
  • Twist prevention integrated into patented holder design
  • Alignment arrows and distinct module slots for reliable connection
  • No special tools required, simple size 2 screwdriver
  • Communication solutions - AS-interface, IO-Link or PROFINET/PROFIsafe
  • Can be integrated easily via TIA portal
  • Self-holding function of the actuator when mounting
  • Stackable contact modules
  • Components can be mounted with holder removed
  • Mechanical endurance of 10 x 10^6 operating cycles
  • Reliable, friction locked fixing with just one screw
  • Design stability according to use
  • Simple geometry for mounting holes
  • Inscription of choice, text or symbol, can only be ordered via SIRIUS ACT configurator with a Configuration Identification Number (CIN)

Specifications

GTIN: 00804766633034

UNSPSC: 39122216

Country of Origin: Germany

Type
Complete Round
Terminal Type
Screw
Size
22 mm
Weight
0.6 lbs
Contact Mode
Momentary
Enclosure Type
NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
Lamp Type
LED
Operator Type
Flat Button
Mounting Type
Front Plate/Panel
Series
3SU11
Connection Type
Solder Pin
Material
Plastic
Contact Configuration
1NC-1NO
Environmental Conditions
-25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
Contact Type
Silver Alloy
BABA Compliant
No
Color
Black/Clear
Bezel/Housing
Plastic
Sold as
EACH
