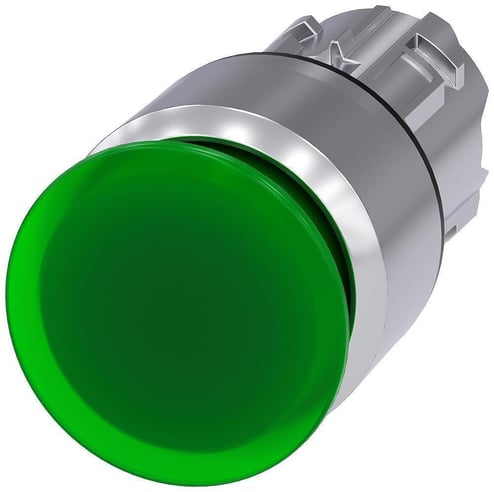

Siemens SIRIUS ACT A6X30139781 3SU10 2-Position Round Illuminated Push-Pull Operator With Laser Labeling, 22 mm, Flat ButtonLatchingPull-UnlatchMushroom Head Pushbutton Operator, GreenSilver
MPN A6X30139781
ASPN SIEA6X30139781
UPC 804766612039
Description
Features
- Direct connection of the enclosure to AS-interface or IO-Link
- Direct connection in the control cabinet to PROFINET, IO-Link or AS-interface
- Can be integrated easily via TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- Media resistance (chemicals) thanks to solid stainless steel and high grade plastics
- Mechanical endurance of 10 x 10^6 operating cycles
- Reliable, friction locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
- Text in upper case
- Without module and holder
Specifications
GTIN: 00804766612039
UNSPSC: 39122216
Country of Origin: China
| Type | 2-Position Round |
|---|---|
| Color | Green/Silver |
| Size | 22 mm |
| Weight | 1.6 lbs |
| Contact Mode | Maintained/Pull-Unlatch |
| Width | 4 in |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K |
| Operator Type | Mushroom Head |
| Mounting Type | Front Plate |
| Series | 3SU10 |
| Material | Plastic |
| Finish | Shiny |
| Temperature Rating | -25 to 70 deg C |
| Bezel/Housing | Metal |
| BABA Compliant | No |
| Sold as | EACH |
