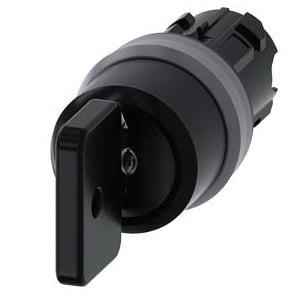

Siemens SIRIUS ACT A6X30139612 3SU10 Non-Illuminated Round Switch Operator With Front Ring, (2) Keys and Laser Labeling, 22 mm, OMR 73034 KeyLatching Operator, 3 Positions, BlackSand GraySilver
Siemens SIRIUS ACT A6X30139612 3SU10 Non-Illuminated Round Switch Operator With Front Ring, (2) Keys and Laser Labeling, 22 mm, OMR 73034 KeyLatching Operator, 3 Positions, BlackSand GraySilver
MPN A6X30139612
ASPN SIEA6X30139612
UPC 804766610349
Description
Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
- Text in upper case
- (2) 45 deg (10:30 hr/12 hr/13:30 hr), return from right, left latching
Specifications
GTIN: 00804766610349
UNSPSC: 39122216
Country of Origin: Germany
| Size | 22 mm |
|---|---|
| Series | 3SU10 |
| Finish | Matte |
| Temperature Rating | -25 to 70 deg C |
| Bezel/Housing | Metal |
| BABA Compliant | No |
| Material | Metal/Plastic |
| Operator Type | OMR 73034 Key/Latching |
| Throw | 2 x 45 deg |
| Number of Positions | 3 |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K |
| Contact Mode | Momentary |
| Weight | 0 lbs |
| Color | Black/Sand Gray/Silver |
| Type | Non-Illuminated Round |
| Sold as | EACH |
