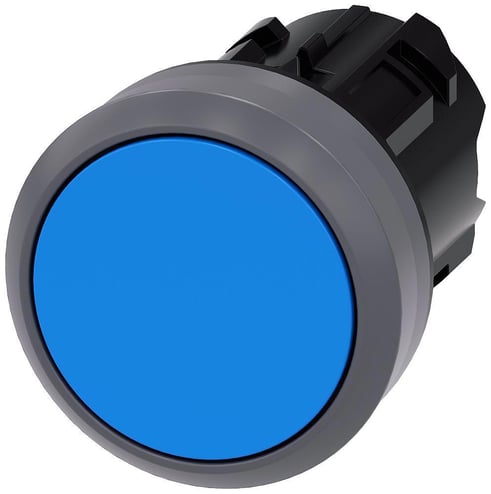

Siemens SIRIUS ACT A6X30137614 3SU10 Round Non-Illuminated Pushbutton Operator With Laser Labeling, 22 mm, BlueSand Gray
Siemens SIRIUS ACT A6X30137614 3SU10 Round Non-Illuminated Pushbutton Operator With Laser Labeling, 22 mm, BlueSand Gray
MPN A6X30137614
ASPN SIEA6X30137614
UPC 804766589867
Description
Features
- Direct connection of the enclosure to AS-interface or IO-Link
- Direct connection in the control cabinet to PROFINET, IO-Link or AS-interface
- Can be integrated easily via TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- Media resistance (chemicals) thanks to solid stainless steel and high grade plastics
- Mechanical endurance of 10 x 10^6 operating cycles
- Reliable, friction locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
- Text in upper/lower case, always upper case for beginning of line
- Without module and holder
Specifications
GTIN: 00804766589867
UNSPSC: 39122216
Country of Origin: China
| Type | Round |
|---|---|
| Color | Blue/Sand Gray |
| Size | 22 mm |
| Weight | 0.4 lbs |
| Width | 13 in |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K |
| Operator Type | Flat Button/Latching/Push-Unlatch |
| Series | 3SU10 |
| Material | Plastic |
| Finish | Matte |
| Temperature Rating | -25 to 70 deg C |
| Bezel/Housing | Metal |
| BABA Compliant | No |
| Sold as | EACH |
