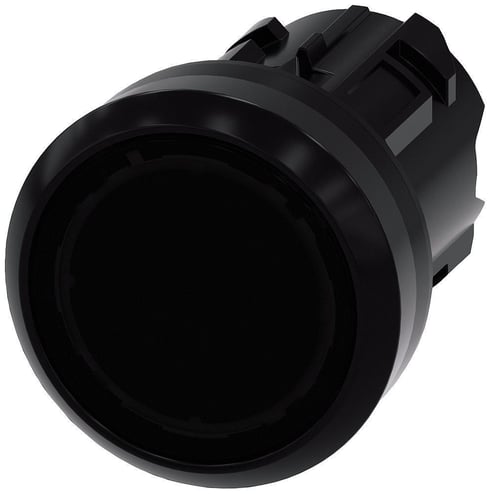

Siemens SIRIUS ACT A6X30137149 3SU10 Round Illuminated Pushbutton Operator, 22 mm, Flat Button Operator, Momentary Contact, Black


Description

Siemens SIRIUS ACT Illuminated Pushbutton Operator, Round, Series: 3SU10, 22 mm, Momentary Contact Mode, Flat Button Operator, Bezel/Housing: Plastic, NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K, Front Plate Mount, -25 to 70 deg C, Plastic, Black

SIRIUS ACT is a modular system of pushbuttons and indicator lights for front plate mounting and rear mounted electrical modules. Thanks to SIRIUS ACT with PROFINET, pushbuttons and indicator lights can be connected directly via PROFINET to the controller and HMI devices including with safety functions. Engineering and commissioning are simplified no end by the TIA portal.

Features

  • Direct connection of the enclosure to AS-interface or IO-Link
  • Direct connection in the control cabinet to PROFINET, IO-Link or AS-interface
  • Can be integrated easily via TIA portal
  • Self-holding function of the actuator when mounting
  • Twist prevention integrated into patented holder design
  • Stackable contact modules
  • Self-explanatory and fast installation using one hand
  • Components can be mounted with holder removed
  • Media resistance (chemicals) thanks to solid stainless steel and high grade plastics
  • Mechanical endurance of 10 x 10^6 operating cycles
  • Reliable, friction locked fixing with just one screw
  • Design stability according to use
  • Simple geometry for mounting holes
  • Without module and holder

Specifications

GTIN: 00804766585210

UNSPSC: 39122216

Alternative Part Number: 3SU10010AB100AA0-Z X90

Country of Origin: China

Type
Round
Color
Black
Size
22 mm
Contact Mode
Momentary
Enclosure Type
NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K
Mounting Type
Front Plate
Series
3SU10
Material
Plastic
Temperature Rating
-25 to 70 deg C
BABA Compliant
No
Bezel/Housing
Plastic
Operator Type
Flat Button
Weight
0.8 lbs
Sold as
EACH
