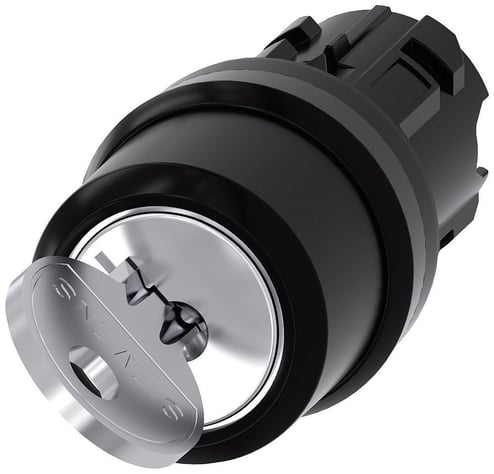

Siemens SIRIUS ACT A6X30136682 3SU10 Non-Illuminated Round Switch Operator With Front Ring, (2) Keys and Laser Labeling, 22 mm, RONIS SB30 Key Operator, 2 Positions, Black/Silver
Siemens SIRIUS ACT A6X30136682 3SU10 Non-Illuminated Round Switch Operator With Front Ring, (2) Keys and Laser Labeling, 22 mm, RONIS SB30 Key Operator, 2 Positions, Black/Silver
MPN A6X30136682
ASPN SIEA6X30136682
UPC 804766580437
Description
Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
- Text in lower case
- 45 deg (10:30 hr/12 hr), return from center to left
- RONIS SB30 Key
Specifications
GTIN: 00804766580437
UNSPSC: 39122216
Country of Origin: Germany
| Type | Non-Illuminated Round |
|---|---|
| Color | Black/Silver |
| Size | 22 mm |
| Contact Mode | Momentary |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K |
| Number of Positions | 2 |
| Throw | 45 deg |
| Operator Type | Keyed |
| Series | 3SU10 |
| Material | Metal/Plastic |
| Volume | 6480 cubic inches |
| Temperature Rating | -25 to 70 deg C |
| Bezel/Housing | Plastic |
| BABA Compliant | No |
| Sold as | EACH |
