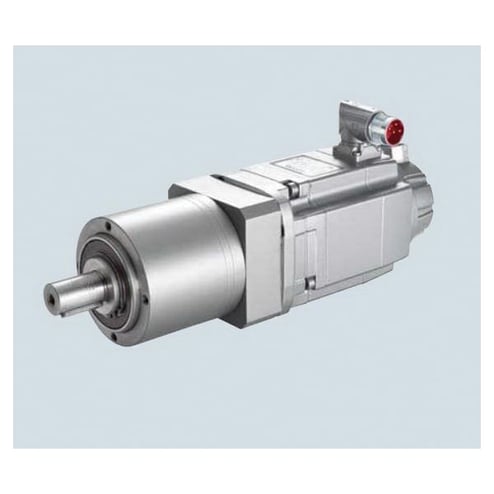

Siemens SIMOTICS S A6X30116293 Compact Natural Cooling Servo Motor, 1.1 hp, 1.95 A, 3000 rpm Speed, IM B5IM V1IM V3 Mount


Description

Siemens SIMOTICS S Servo Motor, Compact Natural Cooling, Series: 1FK7 LP+ Series, Permanent Magnet Synchronous Special Features, 1.1 hp, 1.95 A, 3000 rpm Speed, IP64 Enclosure, 19 mm Dia x 48 mm H Shaft, 2.6 N-m Torque, IM B5/IM V1/IM V3 Mounting, 104 deg F, Insulation Class: Class F, 222 mm L x 96 mm W Dimensions

SIMOTICS S-1FK7 motors can easily be combined with planetary gearboxes to form compact coaxial drive units. The gearboxes are flanged directly to the drive end of the motors. When selecting the gearbox, ensure that its maximum permissible input speed is not exceeded by the maximum speed of the motor. In the case of high operating frequencies, allowance must be made for the factor f2 (see configuration Manual, SIMOTICS S-1FK7 synchronous motors). The frictional losses of the gearbox must always be taken into account when engineering geared drives. The gearboxes are only available in non-balanced design and with feather key.

Features

  • With I-2048 P/R encoder, without DRIVE-CLiQ interface
  • With fitted key and keyway shaft extension, tolerance N radial eccentricity, planetary gears, without holding brake
  • High efficiency 1-stage >97%
  • Minimum torsional backlash </=10 arc min 1-stage
  • Power transmission from the central sun wheel via planet wheels
  • No shaft deflections in the planet wheel set due to symmetrical force distribution
  • The gearboxes are connected to the motor shaft via an integrated clamping hub
  • A plain motor shaft extension is necessary for this purpose
  • Shaft and flange accuracy tolerance N in accordance with DIN 42955 and vibration magnitude grade A in accordance with EN 60034-14 are sufficient
  • The motor flange is adapted by means of adapter plates
  • Output shaft of gearbox exactly coaxial with the motor
  • The gearboxes are suitable for all mounted systems
  • The gearboxes are enclosed (seal between gearbox and motor) and filled with grease in the factory
  • They are lubricated and sealed for their service life
  • Small dimensions
  • Low weight
  • Version for potentially explosive atmospheres zone 2 in accordance with EN 50021/IEC 60079-15

Specifications

GTIN: 00804766322341

UNSPSC: 39122003

Country of Origin: Germany

Type
Compact Natural Cooling
Torque Rating
2.6 N-m
Shaft Size
19 mm Dia x 48 mm H
Speed
3000 rpm
Insulation Class
Class F
Enclosure Type
IP64
Mounting Type
IM B5/IM V1/IM V3
Series
1FK7 LP+ Series
Special Features
Permanent Magnet Synchronous
Amperage Rating
1.95 A
Temperature Rating
104 deg F
Horsepower
1.1 hp
BABA Compliant
No
Dimensions
222 mm L x 96 mm W
Weight
47 lbs
Sold as
EACH
