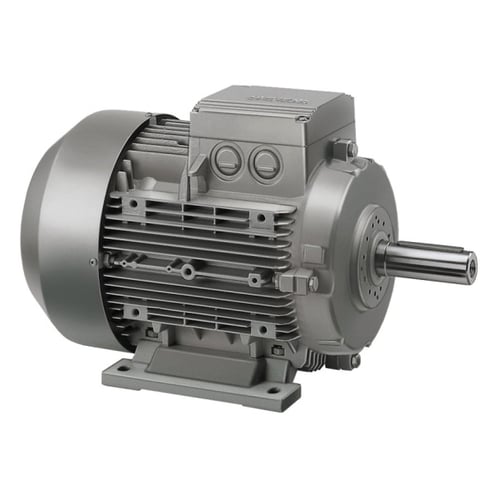

Siemens SIMOTICS A SIEMOSYN A6X30096911 1FU8 4-Pole Self-Cooled AC Motor, IP55 Enclosure, 100Y VAC, 50 Hz, 3 Phase, 80M Frame, 6000 rpm Speed


Description

Siemens SIMOTICS A SIEMOSYN AC Motor, 4-Pole Self-Cooled, Series: 1FU8, Permanent Magnet Excited Synchronous Special Features, 100Y VAC, 9/6.7 A, 50 Hz Frequency, 3 ph, 6000 rpm Speed, IP55 Enclosure, 80M Frame, 19 mm Dia Shaft, 7/5.2 N-m Torque, -20 to 40 deg C, Insulation Class: Class F, 364 mm L Dimensions

The SIEMOSYN 1FU8 motors are permanent magnet synchronous motors with short-circuit cage so that they can synchronously start by themselves. These motors can be connected to the line supply as constant speed drives or connected to a drive converter as variable speed 1-motor drive or group drive. SIEMOSYN 1FU8 motors are preferably supplied from SIMOVERT MASTERDRIVES, MICROMASTER or SINAMICS drive converters. The mechanical design (shaft height, frame, bearing end shields, shaft dimensions etc.) is identical with the standard 1LA7 AC motors (IEC Standard). The motors are available as standard up to a speed of 1500 rpm. They provide a constant drive-out torque over a wide frequency/speed range.

Features

  • The motors do not require a speed encoder, this means that a speed encoder feedback is not required and therefore fewer components, installation, mounting and cabling costs
  • The speed accuracy of single motor and group drives is directly proportional to the frequency of the line supply or the drive converter
  • In group drives, the motors run in synchronism without requiring any other electronic equipment
  • The motors have intrinsically low rotor and excitation losses, this means that they have a higher efficiency than other motors thus reducing operating and energy costs
  • Constant torque over a defined frequency range
  • The speed is independent of the load over the frequency range
  • Electrical braking a holding torque can be provided at standstill with DC
  • The motor has been designed so that it cannot be de-magnetized
  • High degree of protection
  • 3-phase 100Y VAC 50 Hz 9 A 7 N-m 1.1 kW for 20 to 200 Hz or 3-phase 100VY 50 Hz 6.7 A 5.2 N-m 0.82 kW for 13.3 to 200 Hz
  • Without cover, second normal shaft end

Specifications

GTIN: 00887621825829

UNSPSC: 26101109

Country of Origin: Germany

Torque Rating
7/5.2 N-m
Frequency Rating
50 Hz
Weight
39.5 lbs
Shaft Size
19 mm Dia
Speed
6000 rpm
Insulation Class
Class F
Enclosure Type
IP55
Dimensions
364 mm L
Series
1FU8
Phase
3
Special Features
Permanent Magnet Excited Synchronous
Amperage Rating
9/6.7 A
Temperature Rating
-20 to 40 deg C
Frame
80M
BABA Compliant
No
Voltage Rating
100Y V AC
Type
4-Pole Self-Cooled
Sold as
EACH
