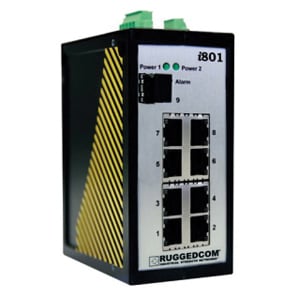

Siemens RUGGEDCOM RuggedSwitch A6X30087858 i801 8-Port Compact Fully Managed Ethernet Switch With Rugged Operating System, 101001000BaseTX Interface, 5.2 Gbps Switching, 1 MB Memory, eRSTPIGMPSNMPSFTP Protocol

Siemens RUGGEDCOM RuggedSwitch Ethernet Switch, 8-Port Compact Fully Managed, Series: i801, 10/100/1000BaseTX Interface, 5.2 Gbps Switching Capacity, Memory: 1 MB, Protocol: eRSTP/IGMP/SNMP/SFTP, Network: VLAN/Fast/Gigabit Ethernet, Pluggable Terminal Block Connectivity, Cat 5 UTP/Copper/Fiber Optic Cable, 24 VDC Supply, IP40, DIN Rail Mount, 99.5 mm Length, 56.5 mm Width, 134.5 mm Height, -40 to 185 deg F, Environmental Conditions: -40 to 185 deg F Storage, Up to 95% Non-Condensing Ambient Relative Humidity

The RUGGEDCOM® i801 is a compact, fully managed Ethernet switch designed to operate reliably in harsh industrial environments. The flexibility of the RUGGEDCOM® i801 allows the user to choose from managed or unmanaged, regular or extended temperature, fiber optical or copper interfaces and fast or gigabit Ethernet. With up to nine Ethernet ports, the RUGGEDCOM® i801 is the perfect choice for a wide variety of demanding industrial environments such as those found in process control applications (oil and gas, petro chemical, metals and mining, wind farms). The RUGGEDCOM® i801 is packaged in a compact, die cast aluminum, DIN mountable enclosure for efficient use of cabinet space. Dual 24 VDC power inputs increase reliability in case of primary power supply faults. The i800 provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments found in industrial applications. An operating temperature range of -20 to 60 deg C (-4 to 140 deg F) or optionally -40 to 85 deg C (-40 to 185 deg F), coupled with hazardous location certification (class 1 division 2) allows the RUGGEDCOM® i801 to be placed in almost any location. The RUGGEDCOM® i801 features a full array of intelligent functionality for high network availability and manageability. The embedded Rugged Operating System (ROS®) provides advanced layer 2 and layer 3 networking functions and advanced cyber security features. The Enhanced Rapid Spanning Tree Protocol (eRSTP™) provides very fast network recovery in case of failures, guaranteeing a high availability network and allows any topology from ring to mesh. Numerous other features like VLANs and QoS make the RUGGEDCOM® i801 an enterprise class switch in an industrial class package.
