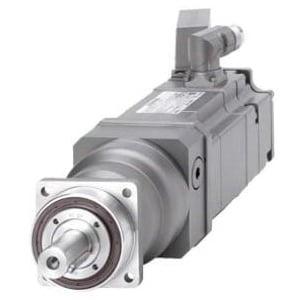

Siemens SIMOTICS S A6X30083895 1-Stage Compact Natural Cooling Servo Motor, 2.8 hp, 6.1 A, 4000 rpm Speed, IM B5IM V1IM V3 Mount


Description

Siemens SIMOTICS S Servo Motor, 1-Stage Compact Natural Cooling, Series: 1FK7 SP+ Series, Permanent Magnet Synchronous Special Features, 2.8 hp, 6.1 A, 4000 rpm Speed, IP65/IP67 Enclosure, 24 mm Dia x 63 mm H Shaft, Tapered Roller Bearing, 5 N-m Torque, IM B5/IM V1/IM V3 Mounting, 104 deg F, Insulation Class: Class F, 450 mm L x 126 mm W Dimensions

SIMOTICS S-1FK7 motors can easily be combined with planetary gearboxes to form compact coaxial drive units. The gearboxes are flanged directly to the drive end of the motors. When selecting the gearbox, ensure that its maximum permissible input speed is not exceeded by the maximum speed of the motor. In the case of high operating frequencies, allowance must be made for the factor f2 (see configuration Manual, SIMOTICS S-1FK7 synchronous motors). The frictional losses of the gearbox must always be taken into account when engineering geared drives. The gearboxes are only available in non-balanced design.

Features

  • With EnDat 2048 P/R encoder, DRIVE-CLiQ interface
  • With plain shaft extension, tolerance N radial eccentricity, planetary gears, without holding brake
  • High efficiency >97% 1-stage, >94% 2-stage
  • Minimum torsional backlash </=4 arc min 1-stage, </=6 arc min 2-stage
  • Power transmission from the central sun wheel via planet wheels
  • No shaft deflections in the planet wheel set due to symmetrical force distribution
  • Very low moment of inertia and thus short acceleration times of the motors
  • Output shaft bearings dimensioned for high cantilever and axial loads with preloaded tapered roller bearings
  • The gearboxes are connected to the motor shaft via an integrated clamping hub
  • A plain motor shaft extension is necessary for this purpose
  • Shaft and flange accuracy tolerance N in accordance with DIN 42955 and vibration magnitude grade A in accordance with EN 60034-14 are sufficient
  • The motor flange is adapted by means of adapter plates
  • Output shaft of gearbox exactly coaxial with the motor
  • The gearboxes are enclosed (seal between gearbox and motor) and filled with oil at the factory
  • They are lubricated and sealed for their service life
  • The gearboxes are suitable for all mounting positions
  • Small dimensions
  • Low weight

Specifications

GTIN: 00887621134761

UNSPSC: 39122003

Alternative Part Number: 1FK70635AH711FG5-Z J09

Country of Origin: Germany

Torque Rating
5 N-m
Shaft Size
24 mm Dia x 63 mm H
Speed
4000 rpm
Insulation Class
Class F
Enclosure Type
IP65/IP67
Mounting Type
IM B5/IM V1/IM V3
Special Features
Permanent Magnet Synchronous
Amperage Rating
6.1 A
Temperature Rating
104 deg F
Horsepower
2.8 hp
BABA Compliant
No
Bearing Type
Tapered Roller
Series
1FK7 SP+ Series
Dimensions
450 mm L x 126 mm W
Width
1.1 in
Weight
2.2 lbs
Type
1-Stage Compact Natural Cooling
Sold as
EACH
