Siemens PROFIBUS ECOFAST 6XV18603PH50 Trailing Hybrid Cable GP, 80 V, (6) 1.5 sq-mm Braided Tin Plated Copper Conductor, 5 m L


Description

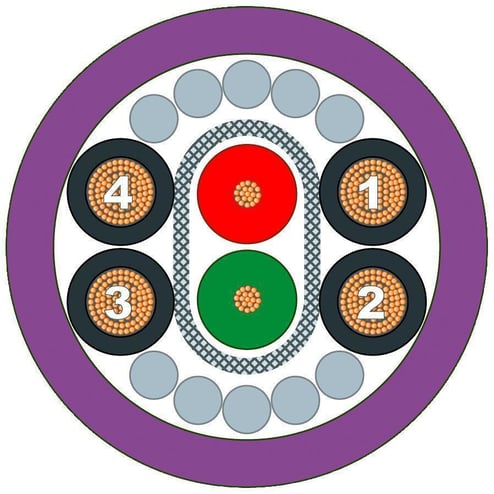

Siemens PROFIBUS ECOFAST Hybrid Cable GP, Trailing, 80 V, 12 A, 6 Conductors, Braided Tin Plated Copper Conductor, 1.5 sq-mm Conductor, 11 mm OD, 5 m Length, 138 Ohm Resistance, Polyethylene Insulation, PVC Jacket, Violet Jacket, -30 to 80 deg C

Features

  • Halogen free
  • Silicone-free
  • Prefabricated with ECOFAST plug and socket

Specifications

GTIN: 00662643226225

UNSPSC: 26121607

Country of Origin: Germany

Outside Diameter
11 mm
Jacket Material
PVC
Insulation Material
Polyethylene
Conductor Type
Braided Tin Plated Copper
Voltage Rating
80 V
Weight
50 lbs
Conductor Size
1.5 sq-mm
Length
5 m
Jacket Color
Violet
Number of Conductors
6
Resistance
138 Ohm
Amperage Rating
12 A
Temperature Rating
-30 to 80 deg C
BABA Compliant
No
Type
Trailing
Sold as
EACH
