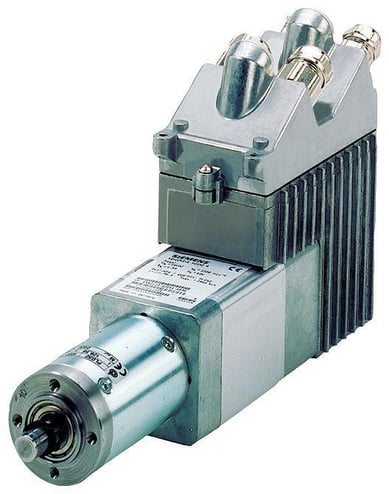

Siemens SIMODRIVE POSMO A 6SN21321CR111BA1 2-Stage Non-Ventilated Programmable Positioning Motor, 2000 rpm Speed, 0.36 N-m Torque, 24 VDC, 36 A


Description

Siemens SIMODRIVE POSMO A Positioning Motor, 2-Stage Non-Ventilated Programmable, Permanent Magnet Excited Brushless Servo Motor Special Features, 75 W Power, 24 VDC, 36 A, 2000 rpm Speed, IP54 Enclosure, 0.36 N-m Torque, 0 to 45 deg C, 202 mm L x 71 mm W x 163 mm H Dimensions

SIMODRIVE POSMO A is an intelligent distributed positioning motor connected as node to the PROFIBUS-DP field bus. SIMODRIVE POSMO A can be operated via PROFIBUS-DP. This means that all of the signals and data required to commission (start-up) and operate the drive and also to evaluate faults are transferred via PROFIBUS. Further, the positioning motor can be operated in the standalone mode. This means that in this case, bus communications are not required in order to move the positioning motor.

Features

  • Power module and complete motion control in the motor
  • Coupled using a communication and power bus
  • PROFIBUS-DP standard slave
  • Positioning functionality which is easy to handle
  • Modular gearbox system with different ratios
  • Planetary gearbox play 1 deg

Specifications

GTIN: 00662643070439

UNSPSC: 39121007

Country of Origin: Germany

Type
2-Stage Non-Ventilated Programmable
Torque Rating
0.36 N-m
Voltage Rating
24 V DC
Weight
0.7 lbs
Speed
2000 rpm
Enclosure Type
IP54
Dimensions
202 mm L x 71 mm W x 163 mm H
Special Features
Permanent Magnet Excited Brushless Servo Motor
Amperage Rating
36 A
Power Rating
75 W
Temperature Rating
0 to 45 deg C
BABA Compliant
No
Sold as
EACH
