Description

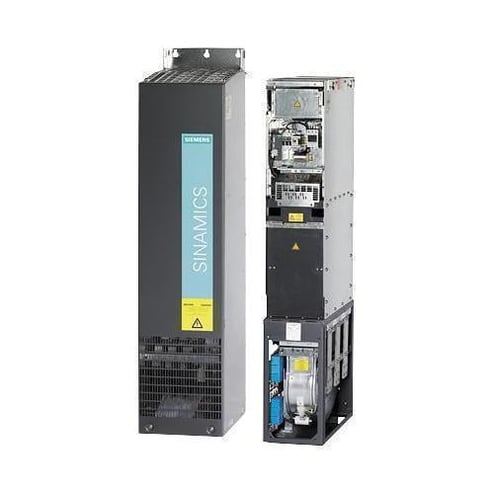

Siemens Active Interface Module, IP20 Enclosure, 12.8 in W x 14 in D x 55.1 in H Dimensions
Active interface modules are used in conjunction with active line modules. Active interface modules contain a clean power filter with basic RI suppression, the pre-charging circuit for the active line module, the line voltage sensing circuit and monitoring sensors. The bypass contactor is an integral component in frame sizes FI and GI, This ensures a highly compact design. The bypass contactor must be provided separately for frame sizes HI and JI.
Features
- One line supply connection
- One load connection
- One connection for the 24 VDC electronics power supply
- One connection for the external 230 VAC supply (fan power supply)
- One DRIVE-CLiQ socket (on VSM10 voltage sensing module)
- One connection for pre-charging circuit, frame sizes HI and JI
- One PE/protective conductor connection
- For SINAMICS S120 chassis format converter air-cooled unit
- For 380 to 480 V, 50/60 Hz 3 ph 132 kW and 160 kW SINAMICS S120 servo drive
Specifications
GTIN: 00804766364129
UNSPSC: 39121012
Country of Origin: Germany
| Enclosure Type | IP20 |
|---|---|
| BABA Compliant | No |
| Dimensions | 12.8 in W x 14 in D x 55.1 in H |
| Weight | 0.3 lbs |
| Sold as | EACH |
