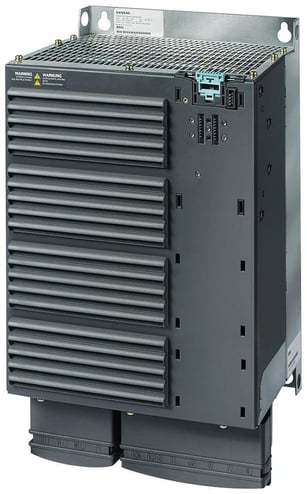

Siemens 6SL32250BE330UA0 SINAMICS G120 3-Phase Power Module, 380 to 480 VAC Input, 400 VAC Output, 56 A Input, 120 A Output
Siemens 6SL32250BE330UA0 SINAMICS G120 3-Phase Power Module, 380 to 480 VAC Input, 400 VAC Output, 56 A Input, 120 A Output
MPN 6SL32250BE330UA0
ASPN SIE6SL32250BE330UA0
UPC 662643506648
Description
Features
- Without integrated line filter
- Without control unit and BOP
- 70 A low overload, 56 A high overload input current
- 75 A low overload, 60 A high overload, 120 A maximum output current
- 0 to 40 deg C low overload, -10 to 50 deg C high overload ambient
Specifications
GTIN: 00662643506648
UNSPSC: 39121007
Country of Origin: Germany
| Type | 3-Phase |
|---|---|
| Output Voltage | 400 VAC |
| Weight | 8 lbs |
| Input Voltage | 380 to 480 VAC |
| Dimensions | 499 mm H x 275 mm W x 204 mm D |
| Output Current | 120 A |
| Temperature Rating | -10 to 50 deg C |
| BABA Compliant | No |
| Series | SINAMICS G120 |
| Input Current | 56 A |
| Specifications | 60 dB Sound Pressure, 97% Efficiency, IP20/Open Enclosure, 47 to 63 Hz |
| Power Dissipation | 0.99 kW |
| Sold as | EACH |
