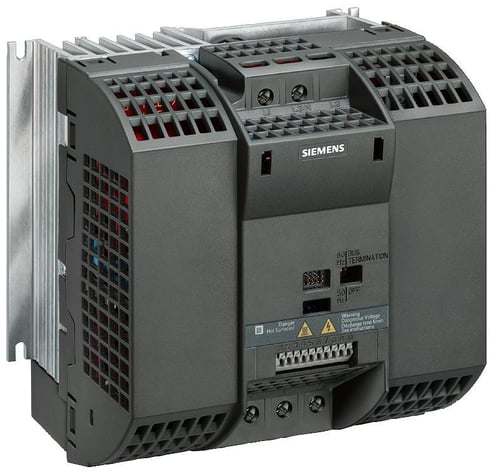

Siemens 6SL32110AB230UA1 SINAMICS G110 Standard AC Variable Frequency Drive, 200 to 240 VAC, 11.8 A, 4 hp, 184 mm W x 152 mm D


Description

Siemens AC Variable Frequency Drive, Standard, Series: SINAMICS G110, 200 to 240 VAC, 11.8 A, 4 hp, 184 mm Width, 152 mm Depth, 181 mm Height, IP20/Open, DIN Rail Mount

The Siemens SINAIMCS G110 v/hz standard drive is a cost effective variable frequency drive designed to be simple to install and easy to setup. The intuitive operator panel and ability to run right out of the box meet the requirements of end users, while its space saving, compact design makes it ideal for OEMs and panel builders.

Features

  • V/Hz control, voltage boost, slip compensation
  • Analog input
  • Innovative flat plate heat sink
  • Without filter, BOP, RS 485 interface
  • 35.6 A rated current input and 13.6 A rated current (IN) output

Specifications

GTIN: 00662643434057

UNSPSC: 39121007

Country of Origin: United Kingdom of Great Britain and Northern Ireland (the)

Type
Standard
Weight
87.1 lbs
Enclosure Type
IP20/Open
Height
181 mm
Mounting Type
DIN Rail
Series
SINAMICS G110
Amperage Rating
11.8 A
BABA Compliant
No
Horsepower
4 hp
Depth
152 mm
Width
184 mm
Voltage Rating
200 to 240 V AC
Sold as
EACH
