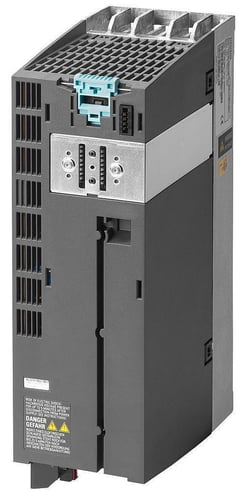

Siemens 6SL32101PE180UL1 SINAMICS G120 3-Phase Power Module With Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 8.8 A Input, 11.8 A Output
Siemens 6SL32101PE180UL1 SINAMICS G120 3-Phase Power Module With Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 8.8 A Input, 11.8 A Output
MPN 6SL32101PE180UL1
ASPN SIE6SL32101PE180UL1
UPC 887621779900
Description
Features
- Without integrated line filter
- Without control unit and panel
- 10.1 A low overload, 8.8 a high overload input current
- 7.7 A low overload, 5.9 A high overload, 11.8 A maximum output current
- -5 to 40 deg C low overload, -10 to 50 deg C high overload ambient
Specifications
GTIN: 00887621779900
UNSPSC: 39121007
Country of Origin: United Kingdom of Great Britain and Northern Ireland (the)
| Type | 3-Phase |
|---|---|
| Output Voltage | 400 VAC |
| Weight | 0.7 lbs |
| Width | 8.5 in |
| Specifications | 72 dB Sound Pressure, 96% Efficiency, IP20/Open Enclosure, 47 to 63 Hz |
| Input Voltage | 380 to 480 VAC |
| Dimensions | 196 mm H x 73 mm W x 165 mm D |
| Input Current | 8.8 A |
| Series | SINAMICS G120 |
| Output Current | 11.8 A |
| Temperature Rating | -10 to 50 deg C |
| Power Dissipation | 0.12 kW |
| BABA Compliant | No |
| Sold as | EACH |
