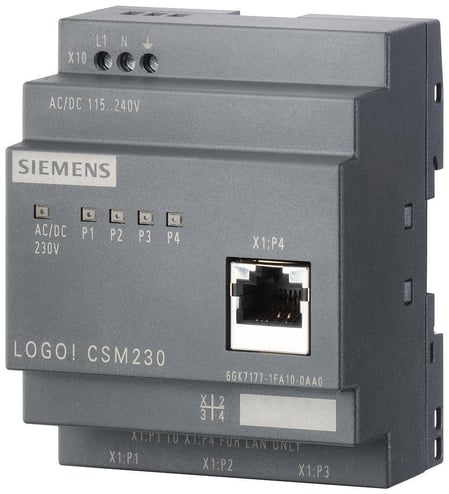

Siemens 6GK71771FA100AA0 Unmanaged Compact Switch Module, (4) RJ45 Port, Telnet/HTTP/HTTPS/TFTP/FTP/DCP/LLDP/SNMP v1/SNMP v2/SNMP v3/SNTP/SSH Protocol


Description

Siemens Compact Switch Module, Unmanaged, (4) RJ45 Port, Telnet/HTTP/HTTPS/TFTP/FTP/DCP/LLDP/SNMP v1/SNMP v2/SNMP v3/SNTP/SSH Protocol, 10/100 Mbps Forwarding Rate, 115 to 240 VAC/VDC Supply, IP20 Enclosure, DIN Rail/Wall Mounting, 72 mm Width, 90 mm Height, 0 to 55 deg C, Environmental Conditions: 90% Humidity at 25 deg C

Simply more connectivity to SIMATIC - These unmanaged switches stand for optimal interface extension for SIMATIC S7-300/ET 200M and S7-1200. Low-cost fan-out unit specially for LOGO! and SIMATIC S7-300/ET 200M or S7-1200. With these Compact Switch Modules, up to three stations can be quickly connected.

Features

  • Low-cost setup of small, local industrial Ethernet networks
  • Fast and simple connection
  • Flexible expansion of the network thanks to simple connection of the CSM
  • Space-saving design of each terminal device, such as SIMATIC or LOGO!
  • Support for standalone use as an unmanaged four port switch for industrial Ethernet networks
  • One front port for diagnostics
  • 10/100 Mbps three further nodes to industrial Ethernet

Specifications

GTIN: 00040892948387

UNSPSC: 43222612

Country of Origin: Germany

Width
72 mm
Port Type
(4) RJ45
Enclosure Type
IP20
Height
90 mm
Forwarding Rate
10/100 Mbps
BABA Compliant
No
Type
Unmanaged
Mounting Type
DIN Rail/Wall
Power Supply
115 to 240 V AC/DC
Protocol
Telnet/HTTP/HTTPS/TFTP/FTP/DCP/LLDP/SNMP v1/SNMP v2/SNMP v3/SNTP/SSH
Temperature Rating
0 to 55 deg C
Environmental Conditions
90% Humidity at 25 deg C
Sold as
EACH
