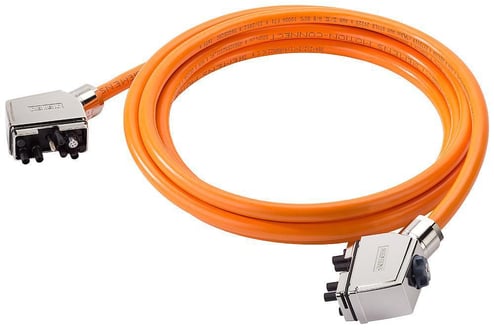

Siemens MOTION-CONNECT 800 PLUS 6FX80027HY221AE1 Pre-Assembled Hybrid Power Cable With AM600 Adapter Module, 6001000 VAC, (11) 22 AWG, 3 sq-mm, 4 sq-mm, 4.1 m L


Description

Siemens MOTION-CONNECT 800 PLUS Hybrid Power Cable, Pre-Assembled, 600/1000 VAC, 11 Conductors, 22 AWG, 3 sq-mm, 4 sq-mm Conductor, 15 mm OD, 4.1 m Length, SINAMICS S120M Connector End Style, CFC Insulation, PUR Jacket, Orange Jacket, -58 to 176 deg F

MOTION-CONNECT® cables and connections are the ideal solution for all those who wish to use high quality, system tested power and signal cables on their machine. Our solution is characterized by lots of highly convincing features, such as an EMC compatibility test of the complete system (controller, inverter, motor and cables), vibration resistance and all relevant functions. MOTION-CONNECT® cables provides state of the art cables and connections (DRIVE-CLiQ, SPEED-CONNECT) for your motion control systems.

Features

  • Superior quality and system responsibility

Specifications

GTIN: 00804766252266

UNSPSC: 26121629

Country of Origin: Slovakia

Type
Pre-Assembled
Outside Diameter
15 mm
Jacket Material
PUR
Insulation Material
CFC
Voltage Rating
600/1000 V AC
Weight
50.2 lbs
Conductor Size
22 AWG, 3 sq-mm, 4 sq-mm
Length
4.1 m
Jacket Color
Orange
Number of Conductors
11
Temperature Rating
-58 to 176 deg F
BABA Compliant
No
End Style
SINAMICS S120M Connector
Sold as
EACH
