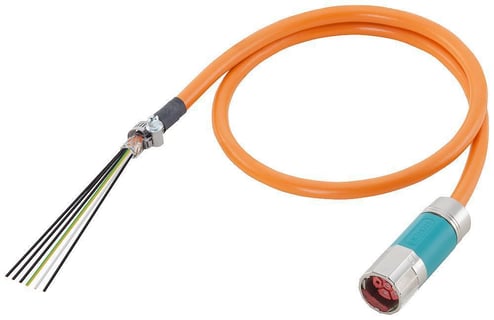

Siemens MOTION-CONNECT 800PLUS 6FX80025CG221BH0 Pre-Assembled Trailable Power Cable, Reel Packaging, 6001000 V, (4
Siemens MOTION-CONNECT 800PLUS 6FX80025CG221BH0 Pre-Assembled Trailable Power Cable, Reel Packaging, 6001000 V, (4
MPN 6FX80025CG221BH0
ASPN SIE6FX80025CG221BH0
UPC 195125030268
Description
Features
- Meets requirements for use in cable carriers
- Suitable for high mechanical loading
- Oil resistance
- Pre-assembled MOTION-CONNECT cables provide high quality and perfect, system tested functionality
- Fast, stable and reliable connections can be made with the new, pre-assembled cables with SPEED-CONNECT connectors
- With a short rotation as far as the stop, the cap nut of the connector secures the connection
- The cables with SPEED-CONNECT connectors supplement the established range of MOTION-CONNECT cables with full thread connectors
Specifications
GTIN: 00195125030268
UNSPSC: 26121629
Country of Origin: Slovakia
| Type | Pre-Assembled Trailable |
|---|---|
| Packaging Type | Reel |
| Outside Diameter | 9.5 mm |
| Jacket Material | PUR |
| End Style | SPEED-CONNECT Connector |
| Insulation Material | CFC |
| Voltage Rating | 600/1000 V |
| Width | 1.8 in |
| Conductor Size | 1.5 sq-mm |
| Length | 17 m |
| Jacket Color | Orange |
| Number of Conductors | 4 |
| Temperature Rating | -50 to 80 deg C |
| BABA Compliant | No |
| Sold as | EACH |
