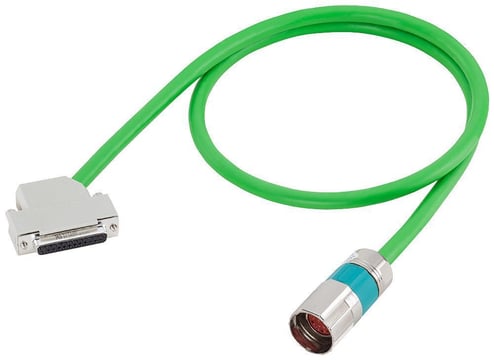

Siemens MOTION-CONNECT 800 PLUS 6FX80022CG001BC0 Pre-Assembled Basic Signal Cable, 30 VAC, (12) 0.34, 0.5 sq-mm Bare Copper Conductor, 12 m L


Description

Siemens MOTION-CONNECT 800 PLUS Basic Signal Cable, Pre-Assembled, 30 VAC, 12 Conductors, Bare Copper Conductor, 0.34 , 0.5 sq-mm Conductor, 9.3 mm OD, 12 m Length, M23 Full Threaded Connector x Sub-D Connector End Style, CFC Insulation, PUR Jacket, Green Jacket, -58 to 176 deg F

MOTION-CONNECT® cables and connections are the ideal solution for all those who wish to use high quality, system tested power and signal cables on their machine. Our solution is characterized by lots of highly convincing features, such as an EMC compatibility test of the complete system (controller, inverter, motor and cables), vibration resistance and all relevant functions. MOTION-CONNECT® cables provides state of the art cables and connections (DRIVE-CLiQ, SPEED-CONNECT) for your motion control systems.

Features

  • Superior quality and system responsibility

Specifications

GTIN: 00662643055658

UNSPSC: 26121604

Country of Origin: Slovakia

Conductor Type
Bare Copper
BABA Compliant
No
Temperature Rating
-58 to 176 deg F
Number of Conductors
12
Jacket Color
Green
Length
12 m
Conductor Size
0.34 , 0.5 sq-mm
Voltage Rating
30 V AC
Insulation Material
CFC
End Style
M23 Full Threaded Connector x Sub-D Connector
Jacket Material
PUR
Outside Diameter
9.3 mm
Type
Pre-Assembled
Sold as
EACH
