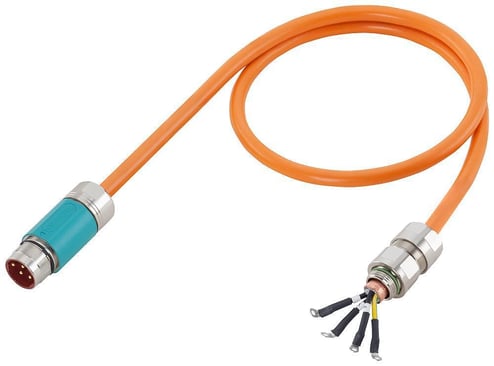

Siemens MOTION-CONNECT 700 6FX70025LM321BC6 Pre-Assembled Adapter Power Cable, 6001000 VAC, (4) 10 sq-mm, 2.6 m L


Description

Siemens MOTION-CONNECT 700 Adapter Power Cable, Pre-Assembled, 600/1000 VAC, 4 Conductors, 10 sq-mm Conductor, 19.2 mm OD, 2.6 m Length, M32 Full Threaded Connector x Size 1.5 SINAMICS S120 Motor Module Connector End Style, CFC Insulation, PUR Jacket, Orange Jacket, -58 to 176 deg F

MOTION-CONNECT® cables are suitable for use with many different types of machine tools and production machines. The power cables and signal cables can be ordered by the meter or preassembled.

Features

  • The ideal complement to linear motors and machines with high mechanical requirements
  • High quality, ensuring safety and perfect functioning
  • Cost savings with logistics, design, assembly and purchasing
  • Liability for defects by Siemens

Specifications

GTIN: 00040892999983

UNSPSC: 26121629

Country of Origin: Slovakia

Type
Pre-Assembled
Outside Diameter
19.2 mm
Jacket Material
PUR
End Style
M32 Full Threaded Connector x Size 1.5 SINAMICS S120 Motor Module Connector
Insulation Material
CFC
Voltage Rating
600/1000 V AC
Weight
1.7 lbs
Width
6.5 in
Conductor Size
10 sq-mm
Length
2.6 m
Jacket Color
Orange
Number of Conductors
4
Temperature Rating
-58 to 176 deg F
BABA Compliant
No
Sold as
EACH
