Description

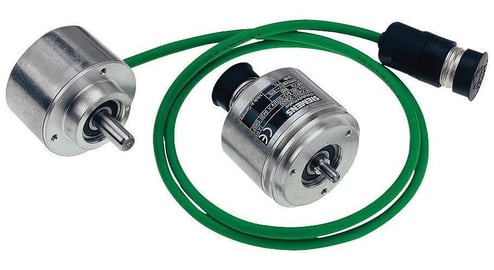

Siemens Incremental Position Encoder, 5 VDC, 150 mA, 6 mm Shaft Diameter, 10 mm Shaft Length, 7200 rpm Electrical/12000 rpm Mechanical Speed, 2500 ppr Duty Cycle, RS422/TTL Interface, Axial Flange Connector Connection, 300 m/sq-s Vibration Level, Synchronous Flange Mounting, IP64/IP67 Enclosure, -40 to 100 deg C Operating
Specifications
GTIN: 00662643407082
UNSPSC: 39121527
Country of Origin: Germany
| Operating Temperature | -40 to 100 deg C |
|---|---|
| Duty Cycle | 2500 ppr |
| Voltage Rating | 5 V DC |
| Weight | 5.8 lbs |
| Width | 7.4 in |
| Enclosure Type | IP64/IP67 |
| Shaft Diameter | 6 mm |
| Vibration Level | 300 m/sq-s |
| Mounting Type | Synchronous Flange |
| Connection Type | Axial Flange Connector |
| Interface | RS422/TTL |
| Amperage Rating | 150 mA |
| Speed Rating | 7200 rpm Electrical/12000 rpm Mechanical |
| Shaft Length | 10 mm |
| BABA Compliant | No |
| Sold as | EACH |
