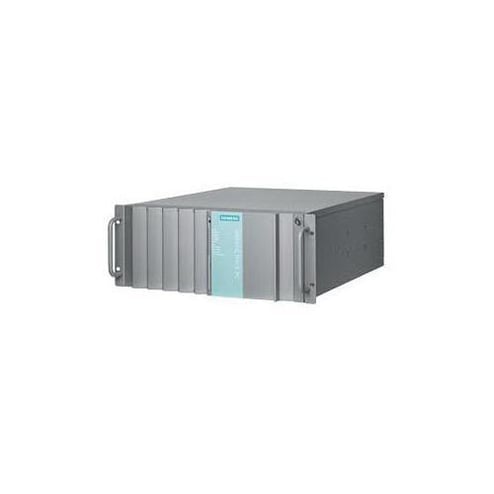

Siemens SIMATIC 6ES76606GN612AD3 IPC847D Industrial Rack PC, Xeon E3-1268L v3 (4C8T, TB, VT-d, AMT), ESOS Single Station Processor, 2.3 GHz Speed, 16 GB (2 x 8 GB) DDR3 SDRAM, ECC Ram

Siemens SIMATIC Industrial Rack PC, Series: IPC847D, Processor: Xeon E3-1268L v3 (4C/8T, TB, VT-d, AMT), ES/OS Single Station, 2.3 GHz, 8 MB Cache Memory, 16 GB (2 x 8 GB) DDR3 SDRAM, ECC Ram Memory, Hard Disk: RAID 1, 1 TB (2 x 1 TB HDD SATA, Data Mirroring), Hot Swap, 240 GB SSD (eMLC) SATA, Expansion/Connectivity: Dual Channel 3 x PCI, 3 x PCIe x4, 1 x PCIe x16 (8 Lanes), 4 x PCIe x16 (8 Lanes), 2 x USB 3.0, 2 x USB 2.0 On Rear, 1 x USB 3.0, 1 x USB 2.0. On Front, 1 x USB 3.0 Internal, (COM1), Video Specification: 2 x DisplayPort, 1 x DVI-I, Audio Specifications: Microphone-In, Line-Out, Headphones (2 x 0.5 W/8 Ohm) IDT 92HD81HD, Keyboard/Mouse Input Device, Operating System: Windows 7 Ultimate, 64-bit, Multi-Language (En, Ger, Fr, It, Sp, Ch), Networking Specification: Industrial Ethernet (CP1623), 2 x RJ45 Gigabit Ethernet, 100 to 240 VAC Supply, 19 in 4HE Rack Mount, Environmental Conditions: 5 to 50 deg C Ambient, 177.4 mm H x 430.4 mm W x 444.4 mm D

The SIMATIC PCS 7 industrial workstation of type IPC847D is the most powerful and best equipped system platform. It satisfies all requirements for implementing complex server applications and for archiving process data. Many basic components, such as chipset, processor, memory, etc. are for the most part identical to those of type IPC647D. As a result of the double overall height, the SIMATIC PCS 7 industrial workstation of type IPC847D has more slots and therefore ample potential for expansions. Since it would be over dimensioned as a client, it is only offered as a single station and server. UL certified and have the CE marking for use in industry as well as residential, business and commercial environments. The painted all metal enclosure in 19 in mounting format (4 HUs) is especially protected against dust by a filter and pressurized ventilation. It features a mechanically and electromagnetically rugged design and is very easy to service. The SIMATIC PCS 7 industrial workstations of type IPC847D can be positioned and installed horizontally or vertically. Using an optional tower kit, the rack PC can be converted into an industry tower. The dimensions of the IPC847D also allow space saving assembly in 500 mm deep 19 in control cabinets. Suitable for reliable 24 hr continuous operation at ambient temperatures between 5 to 50 to C. Shocks up to 5 g and vibrations up to 0.5 g can be tolerated during operation.
