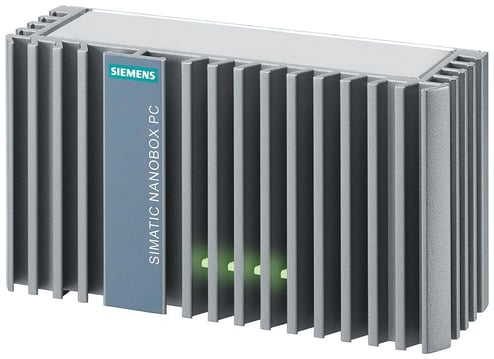

Siemens SIMATIC 6ES76478BD340CA1 IPC227E Built-In Nanobox Industrial Computer, Celeron® N2930 (4C/4T) Processor


Description

Siemens SIMATIC Industrial Computer, Built-In Nanobox, Series: IPC227E, Celeron® N2930 (4C/4T) Processor, 8 GB DDR3L SODIMM Ram Memory, 240 GB SSD Hard Disk, 1 x USB3.0, 3 x USB2.0 Expansion/Connectivity, Video Specification: 1 x DisplayPort, Keyboard/Mouse Input Device, Networking Specification: 2 x 10/100/1000 Mbps Ethernet RJ45, 24 VDC Supply, DIN Rail/Portrait/Wall Mounting, Environmental Conditions: 0 to 60 deg C Operating,-20 to 60 deg C Storage Temperature, 5 to 85% at 30 deg C Operating, 5 to 95% at 25/55 deg C Storage Relative Humidity, 100 mm H x 191 mm W x 60 mm D Dimensions

The SIMATIC IPC227E Nanobox PC is an extremely compact and flexible embedded industrial PC. Thanks to its closed, dust protected all metal enclosure, the IPC227E offers maximum industrial functionality for flexible use under harsh conditions while remaining maintenance-free. Modern interfaces and the option for expansion via a PCIe slot mean this Box PC can be easily integrated into the automation system. The latest Intel dual-core and quad-core processors ensure excellent performance here in an ultra compact design.

Features

  • Without operating system and Simatic software

Specifications

GTIN: 00195125043121

UNSPSC: 43211506

Country of Origin: United States of America (the)

Expansion/Connectivity
1 x USB3.0, 3 x USB2.0
Type
Built-In Nanobox
Processor
Celeron® N2930 (4C/4T)
Ram Memory
8 GB DDR3L SODIMM
Weight
0.3 lbs
Power Supply
24 V DC
Dimensions
100 mm H x 191 mm W x 60 mm D
Input Device
Keyboard/Mouse
Mounting Type
DIN Rail/Portrait/Wall
Series
IPC227E
Environmental Conditions
0 to 60 deg C Operating, -20 to 60 deg C Storage Temperature, 5 to 85% at 30 deg C Operating, 5 to 95% at 25/55 deg C Storage Relative Humidity
Hard Disk
240 GB SSD
Video Specification
1 x DisplayPort
Networking Specification
2 x 10/100/1000 Mbps Ethernet RJ45
BABA Compliant
No
Sold as
EACH
