Siemens SIMATIC 6ES76478BA312CA1 IPC227E Industrial Nanobox PC, Celeron N2807 (2C/2T) Processor, 8 GB DDR3L Ram, 240 GB SSD Hard Disk


Description

Siemens SIMATIC Industrial Nanobox PC, Series: IPC227E, Processor: Celeron N2807 (2C/2T), 8 GB DDR3L Ram Memory, Hard Disk: 240 GB SSD, Expansion/Connectivity: Basis without COM, 1 x USB 3.0, 3 x USB 2.0, Video Specification: 1 x DisplayPort, Keyboard/Mouse Input Device, Operating System: Windows® Embedded Standard 7 E, 64-bit SP1, English, Networking Specification: 2 x 10/100/1000 Mbps RJ45 Ethernet, 24 VDC Supply, DIN Rail Mount, Environmental Conditions: 0 to 60 deg C Ambient, 100 mm H x 191 mm W x 60 mm D

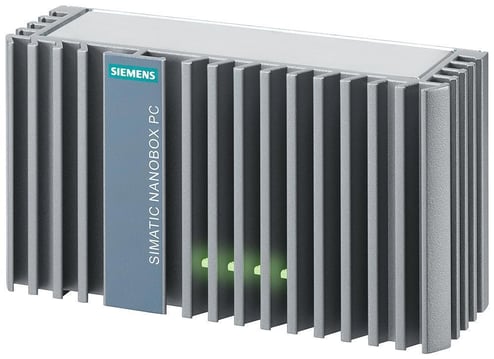

The SIMATIC IPC227E nanobox PC is an extremely compact and flexible embedded industrial PC. Thanks to its closed, dust protected all metal enclosure, the IPC227E offers maximum industrial functionality for flexible use under harsh conditions - while remaining maintenance-free. Modern interfaces and the option for expansion via a PCIe slot mean this Box PC can be easily integrated into the automation system. The latest Intel Dual-Core and Quad-Core processors ensure excellent performance here in an ultra-compact design.

Specifications

GTIN: 00804766728860

UNSPSC: 43211515

Country of Origin: United States of America (the)

Expansion/Connectivity
Basis without COM, 1 x USB 3.0, 3 x USB 2.0
Processor
Celeron N2807 (2C/2T)
Ram Memory
8 GB DDR3L
Weight
0.7 lbs
Power Supply
24 V DC
Dimensions
100 mm H x 191 mm W x 60 mm D
Input Device
Keyboard/Mouse
Mounting Type
DIN Rail
Series
IPC227E
Environmental Conditions
0 to 60 deg C Ambient
Operating System
Windows® Embedded Standard 7 E, 64-bit SP1, English
Hard Disk
240 GB SSD
Video Specification
1 x DisplayPort
Networking Specification
2 x 10/100/1000 Mbps RJ45 Ethernet
BABA Compliant
No
Sold as
EACH
