Description

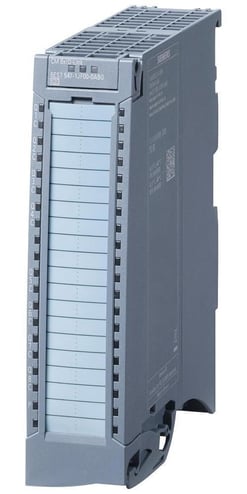

Siemens SIMATIC Communication Module, Series: S7-1500, 24 VDC, 50 mA, 8/32 bit Communication Rate, Push-In/Screw Terminal, 0 to 60 deg C Horizontal Installation/0 to 40 deg C Vertical Installation, 35 mm W x 129 mm D x 147 mm H Dimensions
Features
- IO-link master according to IO-link specification V1.1
- Communication module with 8-ports (channels)
- Data transmission rate COM1 (4.8 kBa), COM2 (38.4 kBa), COM3 (230.4 kBa)
- Standard DI mode
- Suitable for connecting up to eight IO-Link devices (3-wire connection) or eight standard encoders
- Configurable diagnostics can be set for each channel
- Automatic backup of the device parameters during replacement of the IO-Link device (only for V1.1 devices)
- Firmware update
- Identification and maintenance data (I and M)
- IO-link port configuration with S7-PCT
- IO-link port configuration with STEP7 or GSD (without S7-PCT)
- Variable address range of I/O data with up to 240 B inputs and 240 B outputs
- Master backup with function block IO-link-master
- Port qualifier Information (PQI)
- Identification and maintenance 0 to 3
Specifications
GTIN: 00804766827174
UNSPSC: 32151705
Country of Origin: Germany
| Terminal Type | Push-In/Screw |
|---|---|
| Voltage Rating | 24 V DC |
| Amperage Rating | 50 mA |
| Volume | 0 |
| Temperature Rating | 0 to 60 deg C Horizontal Installation/0 to 40 deg C Vertical Installation |
| BABA Compliant | No |
| Series | S7-1500 |
| Dimensions | 35 mm W x 129 mm D x 147 mm H |
| Communication Rate | 8/32 bit |
| Sold as | EACH |
