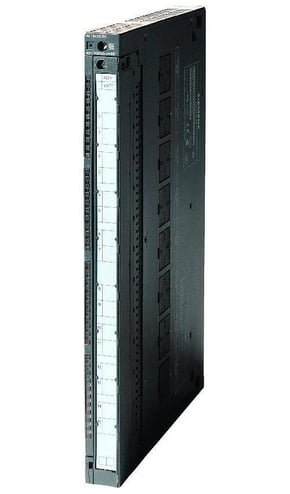

Siemens 6ES74317QH000AB0 Isolated Analog Input Module, 16 Inputs, 16 bit Resolution, 0.150.3% VoltageCurrentResistance Accuracy
Siemens 6ES74317QH000AB0 Isolated Analog Input Module, 16 Inputs, 16 bit Resolution, 0.150.3% VoltageCurrentResistance Accuracy
MPN 6ES74317QH000AB0
ASPN SIE6ES74317QH000AB0
UPC 662643184204
Description
Features
- Diagnostics alarm
- Maximum 400 mA from load voltage L+ (without load), maximum 700 mA from backplane bus 5 VDC
- 0.3% voltage/current/resistance operational error limit at all temperatures, 0.15% voltage/current/resistance basic error limit at 25 deg C
Specifications
GTIN: 00662643184204
UNSPSC: 32151705
Country of Origin: Germany
| Type | Isolated |
|---|---|
| Voltage Rating | 24 V DC |
| Weight | 24 lbs |
| Width | 5.5 in |
| Number of Inputs | 16 |
| Dimensions | 290 mm H x 25 mm W x 210 mm D |
| Conversion Rate | 6/20.1/23.5 ms |
| Resolution | 16 bit |
| Accuracy | 0.15/0.3% Voltage/Current/Resistance |
| Amperage Rating | 400/700 mA |
| BABA Compliant | No |
| Sold as | EACH |
