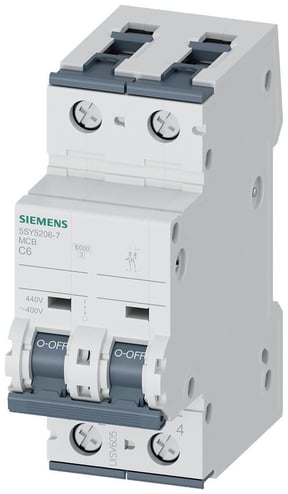

Siemens Sentron 5SY5206-7 Miniature Supplementary Protector, 230400 VAC, 6 A, 10 kA Interrupt, 2 Poles, ThermalMagnetic Trip
Siemens Sentron 5SY5206-7 Miniature Supplementary Protector, 230400 VAC, 6 A, 10 kA Interrupt, 2 Poles, ThermalMagnetic Trip
MPN 5SY5206-7
ASPN SIE5SY52067
UPC 754554878775
Description
Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw-on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type C characteristic is for general device protection in control circuits
- 35 mm DIN-rail mounting
- 5 to 10 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
Specifications
GTIN: 00754554878775
UNSPSC: 39121601
Country of Origin: Germany
| Trip Type | Thermal Magnetic |
|---|---|
| Interrupt Rating | 10 kA |
| Number of Poles | 2 |
| Frequency Rating | 50 Hz |
| Enclosure Type | IP20 |
| Mounting Type | DIN Rail |
| Amperage Rating | 6 A |
| BABA Compliant | No |
| Voltage Rating | 230/400 V AC |
| Wire Size | 14 to 4 AWG |
| Temperature Rating | -25 to 45 deg C |
| Dimensions | 90 mm H x 36 mm W x 70 mm D |
| Trip Range | 6.78 to 8.7 A |
| Connection Type | Line/Load Side/Screw |
| Type | Miniature |
| Frame | 5SY5 |
| Weight | 727.5 lbs |
| Sold as | EACH |
