Description

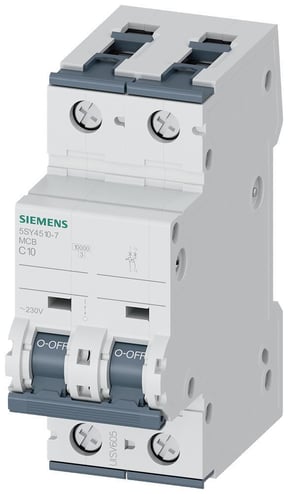

Sentron Supplementary Protector, Miniature, 480 VAC, 10 A, 50 Hz Frequency, 5 kA Interrupt, Thermal/Magnetic Trip, 1+N Pole, Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 36 mm W x 70 mm D Dimensions
Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type C characteristic is for general device protection in control circuits
- 35 mm DIN Rail mounting
- Magnetic trip point - 5 to 10 times in rating
- Thermal trip point - 1.13 to 1.45 protector rating
Specifications
GTIN: 00754554877518
UNSPSC: 39121601
Country of Origin: Germany
| Trip Type | Thermal Magnetic |
|---|---|
| Wire Size | 14 to 4 AWG |
| Interrupt Rating | 5 kA |
| Number of Poles | 1+N |
| Frequency Rating | 50 Hz |
| Voltage Rating | 480 V AC |
| Enclosure Type | IP20 |
| Mounting Type | DIN Rail |
| Connection Type | Screw |
| Amperage Rating | 10 A |
| Temperature Rating | -25 to 45 deg C |
| BABA Compliant | No |
| Dimensions | 90 mm H x 36 mm W x 70 mm D |
| Type | Miniature |
| Sold as | EACH |
