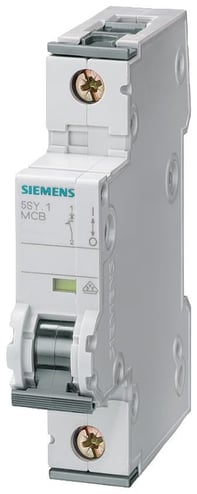

Siemens Sentron™ 5SY4113-7 Miniature Supplementary Protector, 480 VAC, 13 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
Siemens Sentron™ 5SY4113-7 Miniature Supplementary Protector, 480 VAC, 13 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
MPN 5SY4113-7
ASPN SIE5SY41137
UPC 754554875361
Description
Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw-on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type C characteristic is for general device protection in control circuits
- 35 mm DIN-rail mounting
- 5 to 10 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
Specifications
GTIN: 00754554875361
UNSPSC: 39121601
Country of Origin: Germany
| Number of Poles | 1 |
|---|---|
| Frequency Rating | 50 Hz |
| Width | 7.6 in |
| Enclosure Type | IP20 |
| Mounting Type | DIN Rail |
| BABA Compliant | No |
| Temperature Rating | -25 to 45 deg C |
| Amperage Rating | 13 A |
| Connection Type | Line/Load Side/Screw |
| Dimensions | 90 mm H x 18 mm W x 70 mm D |
| Weight | 13.2 lbs |
| Voltage Rating | 480 VAC |
| Wire Size | 14 to 4 AWG |
| Trip Type | Thermal/Magnetic |
| Frame | 5SY4 |
| Interrupt Rating | 10 kA |
| Type | Miniature |
| Trip Range | 14.69 to 18.85 A |
| Sold as | EACH |
