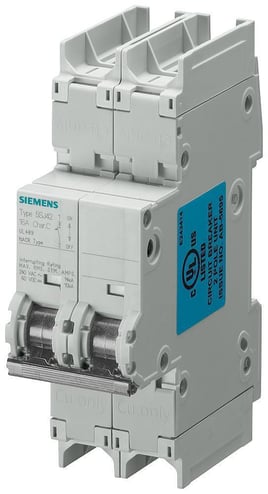

Siemens Sentron 5SJ4211-8HG41 Type HSJ Miniature Circuit Breaker, 240 VAC, 5 A, 14 kA Interrupt, 2 Poles, ThermalMagnetic Trip
Siemens Sentron 5SJ4211-8HG41 Type HSJ Miniature Circuit Breaker, 240 VAC, 5 A, 14 kA Interrupt, 2 Poles, ThermalMagnetic Trip
MPN 5SJ4211-8HG41
ASPN SIE5SJ42118HG41
UPC 754554939575
Description
Features
- 40 deg C calibration base (industrial applications)
- 30 deg C calibration base
- Can be used for field wiring applications 14 to 4 AWG copper only
- Suitable for reverse feed applications
- D-trip is designed for high inrush loads, magnetic trip point is 10 to 20 times the MCB rating
- 0.75 to 35 sq-mm solid and stranded conductors
- Visible indicator for on and off/trip
- Touch protection to EN50274
- Identical wire screw connections on line and load side
- Smaller size than traditional MCCBs
- 35 mm DIN standard mounting rail
Specifications
GTIN: 00754554939575
UNSPSC: 39121601
Country of Origin: Germany
| Type | Type HSJ |
|---|---|
| Trip Type | Thermal Magnetic |
| Wire Size | 14 to 4 AWG |
| Interrupt Rating | 14 kA |
| Number of Poles | 2 |
| Frequency Rating | 50 Hz |
| Voltage Rating | 240 V AC |
| Actuator Type | Handle |
| Weight | 11.6 oz |
| Enclosure Type | IP20 |
| Dimensions | 110 mm H x 36 mm W x 70 mm D |
| Mounting Type | DIN Rail |
| Connection Type | Line/Load/Screw |
| Phase | 1 |
| Amperage Rating | 5 A |
| Temperature Rating | -25 to 55 deg C |
| BABA Compliant | No |
| Sold as | EACH |
