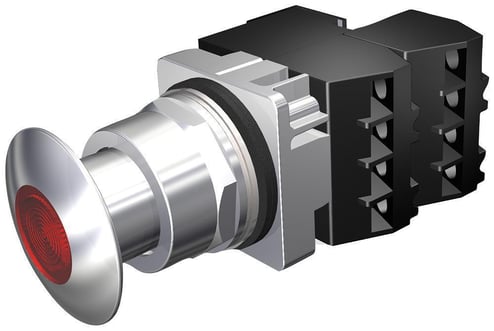

Siemens 52PP2E2G Command 52 Class 52 Complete Corrosion-Resistant Full Voltage Heavy Duty Oil/Watertight Illuminated Push-Pull Switch, 30 mm, 2NC Contact, Silver Contact, 44.5 mm Mushroom Head Operator, Red


Description

Siemens Illuminated Push-Pull Switch, Class 52 Complete Corrosion-Resistant Full Voltage Heavy Duty Oil/Watertight, Series: Command 52, 30 mm Size, 2NC Contact Configuration, Silver Contact, Maintained Contact Mode, 44.5 mm Mushroom Head Operator, 2 Positions, Incandescent Lamp, Screw Terminal, NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66 Enclosure, Metal, Polished Chrome, Red, Environmental Conditions: -31 to 158 deg F Operating, -40 to 185 deg F Storage

Siemens 30 mm NEMA pilot devices are designed to provide long, trouble-free service in the most demanding applications. Durable plastic metal operators with plastic buttons resist oils while internally, contact blocks have double break bifurcated silver contacts which improve overall performance.

Features

  • Octagonal mounting nuts
  • Heavy duty rated NEMA A600/P600 contacts
  • Positively driven contacts
  • Bifurcated movable contacts
  • Positive indexing selectors
  • Boots not required for Type 4
  • Touchsafe terminals

Specifications

GTIN: 00887621501525

UNSPSC: 39121534

Country of Origin: Mexico

Type
Class 52 Complete Corrosion-Resistant Full Voltage Heavy Duty Oil/Watertight
Terminal Type
Screw
Color
Red
Size
30 mm
Weight
6.3 lbs
Contact Mode
Maintained
Width
17 in
Enclosure Type
NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66
Number of Positions
2
Lamp Type
Incandescent
Operator Type
44.5 mm Mushroom Head
Series
Command 52
Material
Metal
Contact Configuration
2NC
Environmental Conditions
-31 to 158 deg F Operating, -40 to 185 deg F Storage
Finish
Polished Chrome
BABA Compliant
No
Sold as
EACH
