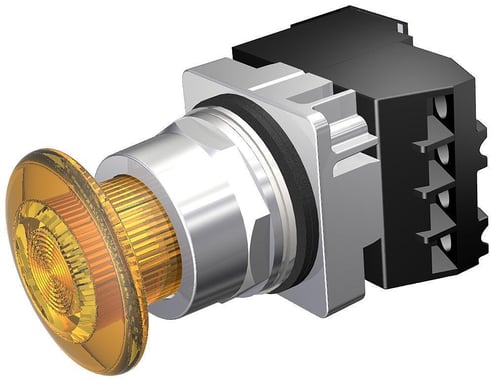

Siemens 52PP2BTA Command 52 Class 52 Complete Corrosion-Resistant Full Voltage Heavy Duty OilWatertight Round Illuminated Push-Pull Switch, 30 mm, 1NC-1NO Contact, Silver Contact, 44.5 mm Mushroom Head Operator, Amber
Siemens 52PP2BTA Command 52 Class 52 Complete Corrosion-Resistant Full Voltage Heavy Duty OilWatertight Round Illuminated Push-Pull Switch, 30 mm, 1NC-1NO Contact, Silver Contact, 44.5 mm Mushroom Head Operator, Amber
MPN 52PP2BTA
ASPN SIE52PP2BTA
UPC 662643875737
Description
Features
- Octagonal mounting nuts
- Heavy duty rated NEMA A600/P600 contacts
- Positively driven contacts
- Bifurcated movable contacts
- Positive indexing selectors
- Boots not required for Type 4
- Touchsafe terminals
Specifications
GTIN: 00662643875737
UNSPSC: 39122216
Country of Origin: Mexico
| Type | Class 52 Complete Corrosion-Resistant Full Voltage Heavy Duty Oil/Watertight Round |
|---|---|
| Terminal Type | Screw |
| Color | Amber |
| Size | 30 mm |
| Contact Mode | Maintained |
| Width | 2 in |
| Enclosure Type | NEMA 1/3/3R/4/4X/12/13/IP20/IP66 |
| Number of Positions | 2 |
| Lamp Type | Incandescent |
| Operator Type | 44.5 mm Mushroom Head |
| Series | Command 52 |
| Actuator | Pull-Release/Pull-Unlatch |
| Material | Metal/Plastic |
| Contact Configuration | 1NO-1NC |
| Environmental Conditions | -31 to 158 deg F Operating, -40 to 185 deg F Storage |
| Finish | Polished Chrome |
| Contact Rating | 60 A at 110 V AC, 30 A at 230 V AC, 15 A at 400 V AC, 12 A at 500 V AC |
| Contact Type | Maintained |
| Bezel/Housing | Metal |
| BABA Compliant | No |
| Sold as | EACH |
