Siemens

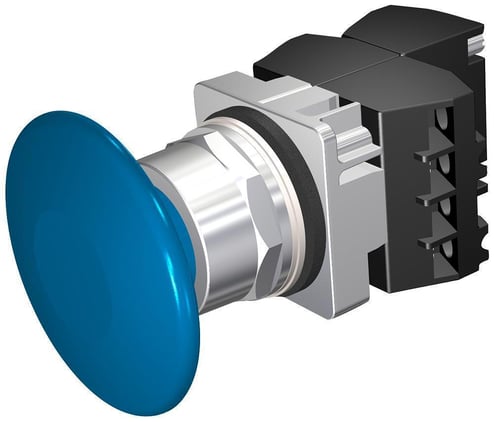

Siemens 52PM9V5C Command 52 Class 52 Complete Corrosion-Resistant Heavy Duty Oil/Watertight Non-Illuminated Pushbutton, 30 mm, 3NO-3NC Contact, Silver Contact, 63.5 mm Mushroom Head Operator, Blue


Description

Siemens Non-Illuminated Pushbutton, Class 52 Complete Corrosion-Resistant Heavy Duty Oil/Watertight, Series: Command 52, 30 mm Size, 3NO-3NC Contact Configuration, Silver Contact, Momentary Contact Mode, 63.5 mm Mushroom Head Operator, 2 Positions, Screw Terminal, NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66 Enclosure, Metal/Plastic, Polished Chrome, Blue, Environmental Conditions: -31 to 158 deg F Operating, -40 to 185 deg F Storage

Siemens 30 mm NEMA pilot devices are designed to provide long, trouble-free service in the most demanding applications. Durable plastic metal operators with plastic buttons resist oils while internally, contact blocks have double break bifurcated silver contacts which improve overall performance.

Features

  • Octagonal mounting nuts
  • Heavy duty rated NEMA A600/P600 contacts
  • Positively driven contacts
  • Positive indexing selectors
  • Bifurcated movable contacts
  • Attractive chrome plating
  • Boots not required for Type 4
  • Touchsafe terminals

Specifications

GTIN: 00887621578190

UNSPSC: 39122216

Country of Origin: Mexico

Type
Class 52 Complete Corrosion-Resistant Heavy Duty Oil/Watertight
Terminal Type
Screw
Color
Blue
Size
30 mm
Weight
0.3 lbs
Contact Mode
Momentary
Width
26.5 in
Enclosure Type
NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66
Number of Positions
2
Operator Type
63.5 mm Mushroom Head
Series
Command 52
Material
Metal/Plastic
Contact Configuration
3NO-3NC
Environmental Conditions
-31 to 158 deg F Operating, -40 to 185 deg F Storage
Finish
Polished Chrome
Contact Type
Momentary
BABA Compliant
No
Sold as
EACH
