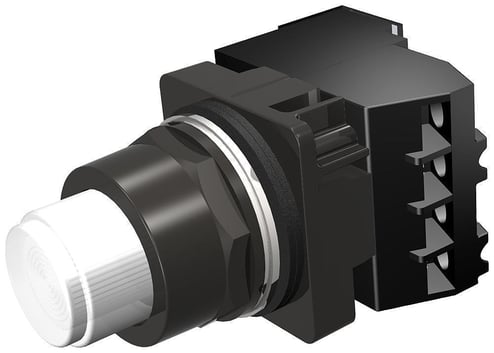

Siemens 52BT6KBAB Class 52 Complete Corrosion-Resistant Heavy Duty OilWatertight Round Transformer Type Illuminated Push-Pull Switch, 30 mm, 1NC-1NO Contact, Silver Contact, Extended ButtonRaised Pushbutton Operator, BlackWhite


Description

Siemens Illuminated Push-Pull Switch, Class 52 Complete Corrosion-Resistant Heavy Duty Oil/Watertight Round Transformer Type, 30 mm Size, 1NC-1NO Contact Configuration, Silver Contact, Momentary Contact Mode, Extended Button/Raised Pushbutton Operator, 2 Positions, LED Lamp, Bezel/Housing: Metal, Screw Terminal, NEMA 1/3/3R/4/4X/12/13/IP20/IP66 Enclosure, Plastic, BlackMax/Epoxy Coated, Black/White, Environmental Conditions: -31 to 158 deg F Operating, -40 to 185 deg F Storage

Siemens 30 mm NEMA pilot devices are designed to provide long, trouble-free service in the most demanding applications. Durable plastic metal operators with plastic buttons resist oils while internally, contact blocks have double break bifurcated silver contacts which improve overall performance.

Features

  • Octagonal mounting nuts
  • Heavy duty rated NEMA A600/P600 contacts
  • Positively driven contacts
  • Bifurcated movable contacts
  • Positive indexing selectors
  • Boots not required for Type 4
  • Touchsafe terminals

Specifications

GTIN: 00662643874617

UNSPSC: 39122216

Country of Origin: Mexico

Type
Class 52 Complete Corrosion-Resistant Heavy Duty Oil/Watertight Round Transformer Type
Terminal Type
Screw
Color
Black/White
Size
30 mm
Weight
0
Contact Mode
Momentary
Width
16 in
Enclosure Type
NEMA 1/3/3R/4/4X/12/13/IP20/IP66
Number of Positions
2
Lamp Type
LED
Operator Type
Extended
Material
Plastic
Contact Configuration
1NO-1NC
Environmental Conditions
-31 to 158 deg F Operating, -40 to 185 deg F Storage
Finish
BlackMax/Epoxy Coated
Contact Type
Momentary
Bezel/Housing
Metal
BABA Compliant
No
Sold as
EACH
