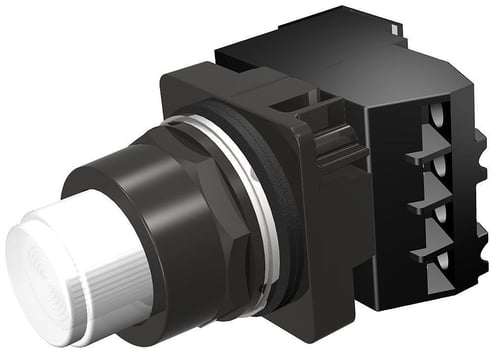

Siemens 52BT6JBA Class 52 Complete Corrosion-Resistant Heavy Duty OilWatertight Round Transformer Type Illuminated Push-Pull Switch, 30 mm, 1NC-1NO Contact, Silver Contact, Extended ButtonRaised Pushbutton Operator, BlackWhite
Siemens 52BT6JBA Class 52 Complete Corrosion-Resistant Heavy Duty OilWatertight Round Transformer Type Illuminated Push-Pull Switch, 30 mm, 1NC-1NO Contact, Silver Contact, Extended ButtonRaised Pushbutton Operator, BlackWhite
MPN 52BT6JBA
ASPN SIE52BT6JBA
UPC 662643874471
Description
Features
- Octagonal mounting nuts
- Heavy duty rated NEMA A600/P600 contacts
- Positively driven contacts
- Bifurcated movable contacts
- Positive indexing selectors
- Boots not required for Type 4
- Touchsafe terminals
Specifications
GTIN: 00662643874471
UNSPSC: 39122216
Alternative Part Number: 11019978
Country of Origin: Mexico
| Type | Class 52 Complete Corrosion-Resistant Heavy Duty Oil/Watertight Round Transformer Type |
|---|---|
| Terminal Type | Screw |
| Size | 30 mm |
| Contact Mode | Momentary |
| Enclosure Type | NEMA 1/3/3R/4/4X/12/13/IP20/IP66 |
| Number of Positions | 2 |
| Lamp Type | Incandescent |
| Material | Plastic |
| Contact Configuration | 1NC-1NO |
| Environmental Conditions | -31 to 158 deg F Operating, -40 to 185 deg F Storage |
| Finish | BlackMax/Epoxy Coated |
| Contact Type | Silver |
| Bezel/Housing | Metal |
| BABA Compliant | No |
| Operator Type | Extended Button/Raised Pushbutton |
| Color | Black/White |
| Weight | 424 lbs |
| Sold as | EACH |
