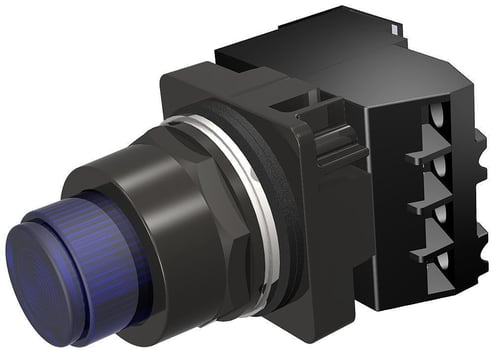

Siemens 52BT6D5AB Class 52 Corrosion-Resistant Full Voltage Heavy Duty Round Standard Oil/Watertight Illuminated Pushbutton With Extended Lens, 30 mm, 1NC-1NO Contact, Raised Button Operator, Blue


Description

Siemens Illuminated Pushbutton, Class 52 Corrosion-Resistant Full Voltage Heavy Duty Round Standard Oil/Watertight, 30 mm Size, 1NC-1NO Contact Configuration, Momentary Contact Mode, 60 A at 110 VAC, 30 A at 230 VAC, 15 A at 400 VAC, 12 A at 500 VAC Contact, Raised Button Operator, 2 Positions, LED Lamp, Screw Terminal, NEMA 1/3/3R/4/4X/12/13/IP20/IP66 Enclosure, Metal/Plastic, BlackMax/Epoxy Coated, Blue, Environmental Conditions: -35 to 70 deg C Operating Temperature, -40 to 85 deg C Storage Temperature

Features

  • Octagonal mounting nuts
  • Heavy duty rated nema A600/P600 contacts
  • Positively driven contacts
  • Positive indexing selectors
  • Bifurcated movable contacts
  • Attractive chrome plating
  • Boots not required for type 4
  • Touchsafe terminals
  • Without unlocking device

Specifications

GTIN: 00662643314205

UNSPSC: 39122216

Country of Origin: Mexico

Terminal Type
Screw
Color
Blue
Size
30 mm
Weight
0.1 lbs
Contact Mode
Momentary
Enclosure Type
NEMA 1/3/3R/4/4X/12/13/IP20/IP66
Number of Positions
2
Lamp Type
LED
Operator Type
Raised Button
Material
Metal/Plastic
Contact Configuration
1NC-1NO
Finish
BlackMax/Epoxy Coated
Contact Rating
60 A at 110 VAC, 30 A at 230 VAC, 15 A at 400 VAC, 12 A at 500 VAC
BABA Compliant
No
Environmental Conditions
-35 to 70 deg C Operating Temperature, -40 to 85 deg C Storage Temperature
Type
Class 52 Corrosion-Resistant Full Voltage Heavy Duty Round Standard Oil/Watertight
Sold as
EACH
