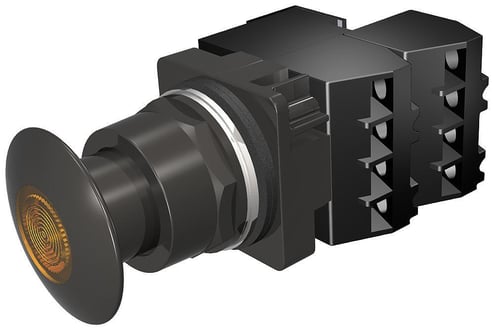

Siemens 52BP7J9U Class 52 Complete Corrosion-Resistant Heavy Duty OilWatertight Transformer Type Illuminated Push-Pull Switch, 30 mm, 2NC Contact, Silver Contact, 44.5 mm Mushroom Head Operator, Amber


Description

Siemens Illuminated Push-Pull Switch, Class 52 Complete Corrosion-Resistant Heavy Duty Oil/Watertight Transformer Type, 30 mm Size, 2NC Contact Configuration, Silver Contact, Maintained In/Momentary Out Contact Mode, 44.5 mm Mushroom Head Operator, 3 Positions, Incandescent Lamp, Screw Terminal, NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66 Enclosure, Metal, BlackMax/Epoxy Coated, Amber, Environmental Conditions: -31 to 158 deg F Operating, -40 to 185 deg F Storage

Siemens 30 mm NEMA pilot devices are designed to provide long, trouble-free service in the most demanding applications. Durable plastic metal operators with plastic buttons resist oils while internally, contact blocks have double break bifurcated silver contacts which improve overall performance.

Features

  • Octagonal mounting nuts
  • Heavy duty rated NEMA A600/P600 contacts
  • Positively driven contacts
  • Bifurcated movable contacts
  • Positive indexing selectors
  • Boots not required for Type 4
  • Touchsafe terminals

Specifications

GTIN: 00662643871180

UNSPSC: 39122216

Country of Origin: Mexico

Type
Class 52 Complete Corrosion-Resistant Heavy Duty Oil/Watertight Transformer Type
Terminal Type
Screw
Color
Amber
Size
30 mm
Weight
0
Contact Mode
Maintained In/Momentary Out
Enclosure Type
NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66
Number of Positions
3
Lamp Type
Incandescent
Operator Type
44.5 mm Mushroom Head
Material
Metal
Contact Configuration
2NC
Environmental Conditions
-31 to 158 deg F Operating, -40 to 185 deg F Storage
Finish
BlackMax/Epoxy Coated
BABA Compliant
No
Sold as
EACH
