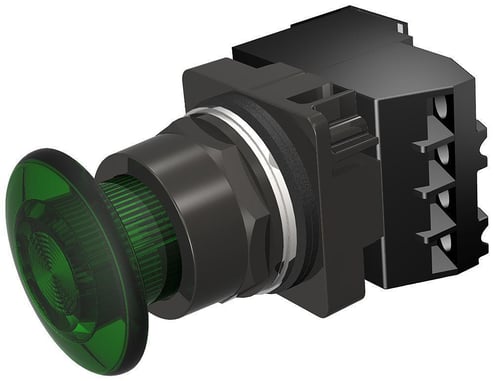

Siemens 52BP2ESA Class 52 Full Voltage Illuminated Push-Pull Switch, 30 mm, 1NC-1NO Contact, Heavy Duty Contact, Push-PullMushroom Head Operator, Green
Siemens 52BP2ESA Class 52 Full Voltage Illuminated Push-Pull Switch, 30 mm, 1NC-1NO Contact, Heavy Duty Contact, Push-PullMushroom Head Operator, Green
MPN 52BP2ESA
ASPN SIE52BP2ESA
UPC 662643862911
Description
Features
- New modular design allowing for quick delivery, multiple distributor options and a full product line for the end user
- Lighting modules, operators and lens can be ordered fully assembled or independently depending on your applications
- Latest in illumination technology delivering traditional incandescent lights, energy saving LEDs and energy saving extra bright cluster LEDs
- New ribbed concentric lens providing improved lighting distribution and aesthetic appeal
- Less mounting space making Siemens new 30 mm smaller than ever
- Silver contacts with gold flashing improving contact fidelity of all our contact blocks
- BlackMax corrosion-resistant line withstanding the harshest environments
Specifications
GTIN: 00662643862911
UNSPSC: 39122216
Alternative Part Number: 11018865
Country of Origin: Mexico
| Terminal Type | Touchsafe |
|---|---|
| Color | Green |
| Size | 30 mm |
| Contact Mode | Maintained |
| Enclosure Type | NEMA 1/3/3R/4/4X/12/13 |
| Number of Positions | 2 |
| Lamp Type | Incandescent |
| Material | Plastic |
| BABA Compliant | No |
| Contact Type | Heavy Duty |
| Contact Rating | 60 A at 120 VAC, 30 A at 240 VAC, 15 A at 480 VAC, 12 A at 600 VAC |
| Environmental Conditions | -31 to 158 Operating Temperature, 40 to 185 deg F Storage Temperature |
| Contact Configuration | 1NC-1NO |
| Operator Type | Push-Pull/Mushroom Head |
| Actuator | Push Button |
| Type | Class 52 Full Voltage |
| Finish | Epoxy Coated |
| Sold as | EACH |
