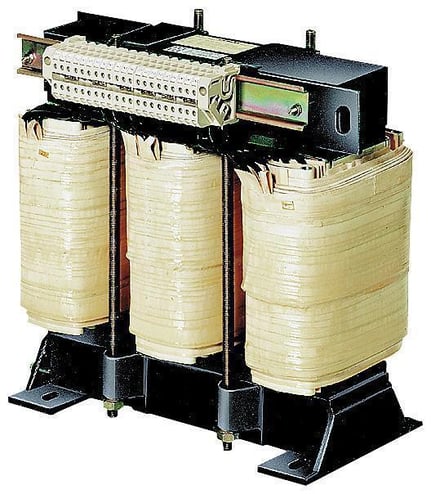

Siemens 4AU3632-8CC40-0HA0 Type 4AU UI Core Isolating Control Transformer, 500 to 380Y VAC, 289 to 220 Delta VAC Primary, 400Y/230 Delta VAC Secondary, 10 kVA Power Rating, 50/60 Hz, 3 Phase
Siemens 4AU3632-8CC40-0HA0 Type 4AU UI Core Isolating Control Transformer, 500 to 380Y VAC, 289 to 220 Delta VAC Primary, 400Y/230 Delta VAC Secondary, 10 kVA Power Rating, 50/60 Hz, 3 Phase
MPN 4AU3632-8CC40-0HA0
ASPN SIE4AU36328CC400HA0
UPC 754554920283
Description
Features
- With electrically separated windings
- High short time rating of the SIRIUS transformers, lower transformer rated power for a large number of contactors
- Suitable for fuseless construction, the small inrush current means that circuit breakers for motor protection can also be used on the primary side
Specifications
GTIN: 00754554920283
UNSPSC: 39121026
Country of Origin: Czechia
| Type | Type 4AU UI Core Isolating |
|---|---|
| Efficiency | 94 % |
| Frequency Rating | 50/60 Hz |
| Weight | 9.1 lbs |
| Enclosure Type | IP00 |
| Dimensions | 0.32 m H x 0.36 m W x 0.268 m D |
| Insulation | Class H/180 deg C |
| Mounting Type | Threaded |
| Secondary Voltage | 400Y/230 Delta V AC |
| Connection Type | Screw Terminal |
| Phase | 3 |
| Primary Voltage | 500 to 380Y V AC, 289 to 220 Delta V AC |
| Power Rating | 10 kVA |
| Temperature Rating | 55 deg C |
| BABA Compliant | No |
| Sold as | EACH |
