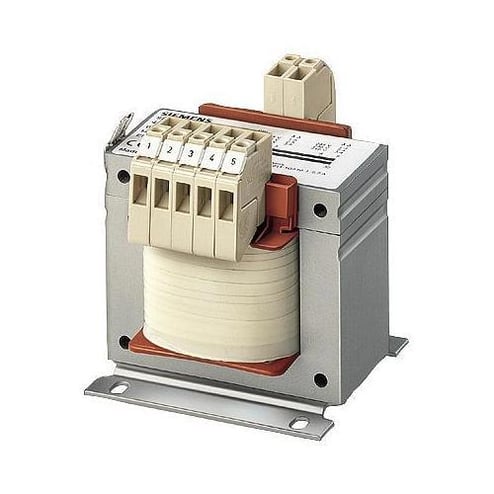

Siemens 4AM3442-5AT10-0FA0 Type 4AM EI Core Isolating Control Transformer, 400 VAC Primary, 230 VAC Secondary, 0.1 kVA Power Rating, 5060 Hz, 1 Phase
Siemens 4AM3442-5AT10-0FA0 Type 4AM EI Core Isolating Control Transformer, 400 VAC Primary, 230 VAC Secondary, 0.1 kVA Power Rating, 5060 Hz, 1 Phase
MPN 4AM3442-5AT10-0FA0
ASPN SIE4AM34425AT100FA0
UPC 754554875026
Description
Features
- With electrically separated windings
- High short time rating of the SIRIUS transformers, lower transformer rated power for a large number of contactors
- Suitable for fuseless construction, the small inrush current means that circuit breakers for motor protection can also be used on the primary side
Specifications
GTIN: 00754554875026
UNSPSC: 39121026
Country of Origin: Czechia
| Type | Type 4AM EI Core Isolating |
|---|---|
| Efficiency | 86 % |
| Frequency Rating | 50/60 Hz |
| Weight | 10.4 lbs |
| Width | 11.1 in |
| Enclosure Type | IP00 |
| Dimensions | 0.098 m H x 0.086 m W x 0.102 m D |
| Insulation | Class B/130 deg C |
| Mounting Type | Rail/Threaded |
| Secondary Voltage | 230 V AC |
| Connection Type | Screw/Tab Terminal |
| Phase | 1 |
| Primary Voltage | 400 V AC |
| Power Rating | 0.1 kVA |
| Temperature Rating | 40 deg C |
| BABA Compliant | No |
| Sold as | EACH |
