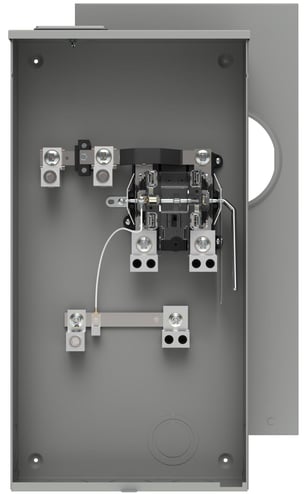

Siemens TALON 48005-82 Type HQSW45 1-Position Continuous Duty Meter Socket With Lever Bypass, Cover Plate and 5th Jaw Kit, 600 VAC, 320 A, 13 Phase, NEMA 3R Enclosure
Siemens TALON 48005-82 Type HQSW45 1-Position Continuous Duty Meter Socket With Lever Bypass, Cover Plate and 5th Jaw Kit, 600 VAC, 320 A, 13 Phase, NEMA 3R Enclosure
MPN 48005-82
ASPN SIE4800582
UPC 662643925456
Description
Features
- Offset design for easier UG wiring
- Silver brazed connection
- 100% rated lever bypass with clamping action on meter
- Factory installed lug or 3/8 in stud connection
- Plated copper current path
- Constructed of 14 ga galvanized steel with polyester powder finish
- Glass fiber reinforced polyester, high strength arc and track-resistant block assembly
- Lever operated jaw release, moving lever up closes bypass and unclamps meter blade
- Meter blade to jaw terminal arcing is eliminated
- Cover cannot be replaced with lever in bypass position
- Terminals are 3/8-24 cold headed, zinc plated, steel stud with nuts and captive Belleville washer to accommodate various pressure type lug
- Track-resistant transparent polycarbonate insulating safety shield and fiber insulating barriers provide protection from accidental shorts and shocks
- 1-phase meter, the insert rejects normal width terminal blade, yet admits the TALON® class 320 narrower upper right hand blade
- The insert is field installable but cannot be removed in the field
- 60162 lug are also rated for (2) 2/0 AWG to 250 kcmil
Specifications
GTIN: 00662643925456
UNSPSC: 39121102
Country of Origin: Mexico
| Frequency Rating | 50/60 Hz |
|---|---|
| Voltage Rating | 600 VAC |
| Hub Type | HD Coverplate |
| Enclosure Type | NEMA 3R |
| Cover Type | Ringless |
| Mounting Type | Surface |
| Amperage Rating | 320 A |
| BABA Compliant | No |
| Hub Size | 4.281 in |
| Number of Jaws | 5 |
| Dimensions | 31 in H x 16 in W x 5 in D |
| Feed Type | Overhead/Underground/Side Wired |
| Weight | 3.3 lbs |
| Wire Size | 4 AWG to 600 kcmil, (2) 4 AWG to 350 kcmil |
| Terminal Type | Line/Load Lug |
| Type | Type HQSW4/5 1-Position Continuous Duty |
| Phase | 1/3 |
| Sold as | EACH |
